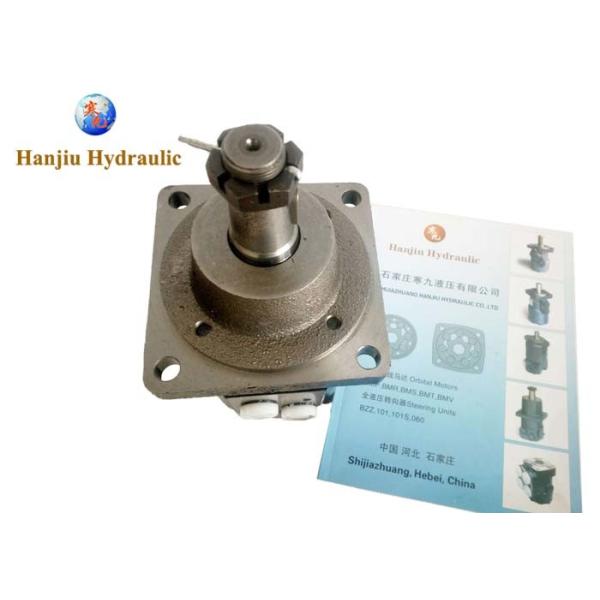

500cc Hydraulic Drive Motor OMSW315 BMSW160 BMSW250 BMSW315 BMSW400

Hydraulic Drive Motor OMSW315 BMSW160 BMSW250 BMSW315 BMSW400

► Characteristic Features

1. Wheel Motor BMSW Same Than OMSW and M+S MSW Series.

2. Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.

3. The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The can offers capacities of high pressure and high torque in the wide of applications.

4. Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life , provide smooth and reliable operation.

5. The new series motor is suitable for vehicles with greater loads and pressure drop.


► Specification

Description: Low speed and high torque orbital hydraulic motor.
Shaft: Cylindrical with a diameter of 32 mm.
Flange: Square with fixing by 4 holes, centering diameter 125 mm and diameter 160 mm between centers of drills.
Width of the tablet (Geroller): 54.8 mm.
Displacement: 314,9 cc / rev.
Side connections: Threaded 1/2 "GAS.
Drainage: 1/4 "GAS.
Maximum speed: 240 rpm (intermittent: 285 rpm).
Maximum torque: 825 Nm (intermittent: 1000 Nm).
Maximum output power: 15 kW (intermittent: 17 kW).
Maximum pressure drop in the motor: 200 bar (intermittent: 240 bar, peak: 260 bar).
Maximum oil flow: 75 liters / minute (intermittent: 90 liters / minute).
Maximum starting pressure with the axis without load: 8 bar.
Minimum starting torque at maximum working pressure in continuous: 710 Nm.
Minimum starting torque at maximum intermittent pressure: 850 Nm.
Intermittent work value is allowed a maximum of 10% per minute.
Peak work value is allowed a maximum of 1% per minute.

Shijiazhuang Hanjiu Technology Co.,ltd. is a professional manufacturer of industrial hydraulic components, located in China - Hebei City. Since 1995, Hanjiu focused on the development and production of full series of hydraulic components, orbit motors, steering orbitrols, directional control valves.

Our products include: GEROLER and GEROTOR motors, hydraulic steering units, directional control valves. More than 50 series, 2000 types. Personalized products and services to provide customers with a significant advantage. Due to the high quality of our products and reliable performance, they are widely used in mobile, industrial, fluid power, dynamic, agricultural, construction, marine, automation, transport, sanitary, etc.

Hanjiu Technology brings together the world's top professional talent and technology, has a highly qualified international personnel. Set from software development to hardware design, system testing, technical services are completed by professional and technical personnel. We have R & D base in Hebei, well-known institutions of higher learning and research institutions at home and abroad, work closely with national patent applications for 63, a number of the core technological achievements and technical indicators at the international advanced level.

To ensure the quality and stability of the machine, we use the most advanced production and testing equipment to check the quality and performance of our hydraulic motors and steering units and valves in each production step to ensure our hydraulic components perfect quality and stable performance.

We provide customers with affordable, high-quality hydraulic components. In order to achieve the advantages of Asia, the full benefit in terms of quality and cost, procurement of key machine from Germany, and the production and manufacturing in China. We have the best supply chain in China and parts manufacturers, and a solid record of quality and innovation, to prove that our 20+-year performance of the hydraulic components

Quality product performance and good reputation, our products are not only successful sales in China, and have been exported to more than 120 countries and regions in the world, including: Germany, Japan, Italy, Spain, Poland, Russia, Belarus, South Korea, Turkey, Egypt, Brazil, Argentina, Chile, India, Australia, the United Arab Emirates, Saudi Arabia, USA, Mexico and other countries, the products are subject to a great welcome and praise.

Our goal is simple: to sell the best hydraulic motors, steering units, valves, components at the best prices, and provides industry-leading customer service. We personally get to know each of our customers, and we know how to discover the most valuable part of our business is Perfect Hydraulics, to help others achieve their goals.

For more detailed information on our hydraulic components, please do not hesitate to contact us! We welcome your inquiries, and look forward to working with you.
