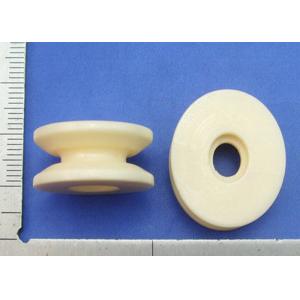

    High 95% Alumina Yarn Guide Ceramic Eyelet Wheel Textile Ceramic Part

    Ask Lasest Price
    Brand Name : KAMTAI
    Model Number : KTJC3
    Certification : ISO 9001
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability : 10000PCS/ MONTH
    Delivery Time : 25 DAYS AFTER PAYMENT
    • Product Details
    • Company Profile

    High 95% Alumina Yarn Guide Ceramic Eyelet Wheel Textile Ceramic Part

    Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products. We can make the part by hot injection pressing, dry pressing, 200T isostatic pressing and extrusion productive technology etc.


    Features
    1.Use temperatures up to 2400°
    2. High density
    3. High hardness
    4. Low thermal conductivity
    5. Chemical inertness
    6. Resistance to molten metals
    7. Good Wear resistance
    8. High fracture toughness

    Performance For Industrial Ceramic
    ItemUnit95 Al2O396 Al2O399 Al2O3
    Physical CharacteristicsHeat resistance0C150015501800
    Bulk densityg/cm33.63.63.9
    Water absorption%000

    Mechanical Characteristics
    Flexural strengthMpa320340360
    Hardness vickersGpa12.213.515.6
    Elastic modulusGpa280320370
    Poisson’s ratio0.220.230.23
    Thermal CharacteristicsLinear expansion coefficient(20-5000C) 10-6/0C7.17.28
    Thermal conductivityw/(m.k)162432
    Specific Heat*10-3J/(kg*K)0.780.780.9
    Electrical CharacteristicsDielectric constant (1MHZ)-99.49.9
    Dielectric loss angle*10-41551
    Dielectric strength*106V/m121515
    Processing technology
    Process range (mm)
    Outside Diameter1---300
    Inside Diameter0.5---300
    Length0.5---600
    Accuracy of working (mm)
    Perpendicularity0.001
    Concentricity0.001
    Roundness0.0005
    Straightness0.005
    Parallelism0.01
    Planeness0.005
    Roughness0.005
    Fit clearance0.005
