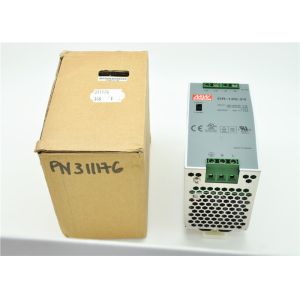

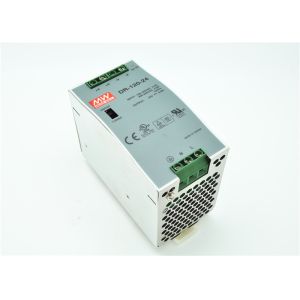

311176 Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3

    Buy cheap 311176  Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3 from wholesalers

    Buy cheap 311176  Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3 from wholesalers
    • Buy cheap 311176  Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3 from wholesalers
    • Buy cheap 311176  Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3 from wholesalers
    • Buy cheap 311176  Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3 from wholesalers
    • Buy cheap 311176  Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3 from wholesalers

    311176 Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3

    Ask Lasest Price
    Brand Name : Favorable
    Model Number : 311176
    Certification : ISO2000
    Price : USD1-1000PCS
    Payment Terms : T/T, Western Union, Paypal
    Delivery Time : 24 hours
    • Product Details
    • Company Profile

    311176 Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3


    311176 Mean Well Power Supply MW DR-120-24,24VDC 5.0A 120W G2/G3


    Product Detail:


    TYPE: Power Supply, Dr-120-24 Ac/Dc Din Rail Power Supply (Psu), Industrial, 1 Output, 120 W, 24 Vdc, 5

    PART NO: 311176

    ESPECIALLY SUITABLE FOR: M55&MH&MH8


    The DR-120-24 from Mean Well is a single output industrial DIN rail power supply. This power supply is approved by UL508, UL60950-1, TUV, EN60950-1 standards.


    Features:

    · AC input range selectable by switch

    · Short circuit, overload, overvoltage and overtemperature protections

    . Cooling by free air convection

    · Can be installed on DIN rail TS-35/7.5 or 15

    . UL 508(industrial control equipment)approved
    . LED indicator for power on
    . 100% full load burn-in test

    · Fixed switching frequency is 55KHz

    · Rated voltage of 24V

    · Rated current of 5A

    · Output power is 120W

    · Input voltage range from 88VAC to 132VAC (176VAC to 264VAC by switch)

    · Efficiency up to 84%

    · Working temperature range from -10°C to 60°C

    . 1 year warrantey


    More photos as below for your reference,




    Company Profile and Advantage:


    Payment and Delivery Detail:



    Below more bristles information for Lectra cutter machines for your reference:


    704234Propack Bristle Block FP/FX/iX/Q25 (x250)
    131241Bristle Block FP/FX/iX/Q25 (x50)
    131181Bristle Block MH/MH8/M88/iH5/iH8/Q50/Q80 (x30)
    704186Propack Bristle Block MH/MH8/M88/iH5/iH8/Q50/Q80 (x180)
    704233Propack Bristle Block MX/MX9/iX6/iX9 (x180)
    131240Bristle Block MX/MX9/iX6/iX9 (x30)
