    30t Warehouse Mold Handling Transfer Steel Floor Steerable Bogie

    Ask Lasest Price
    Brand Name : TOPLEADER
    Model Number : BWP
    Certification : CE,SGS,SASO
    Price : US$1000/SET
    Supply Ability : 500 SET/YEAR
    Delivery Time : 45 Working days
    • Product Details
    • Company Profile

    30t Warehouse Mold Handling Transfer Steel Floor Steerable Bogie

    30t Warehouse Mold Handling Transfer Steel Floor Steerable Bogie


    Product Brief

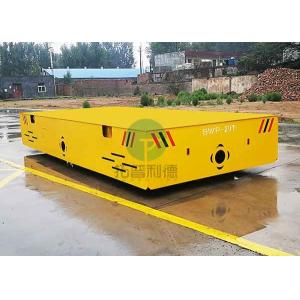

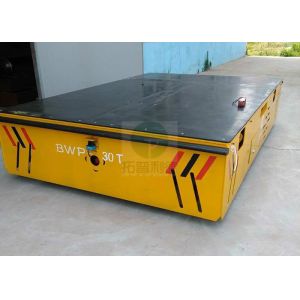

    The steel floor steerable bogie runs on concrete ground or wooden floor. It can turn freely and flexible operation. No rails limit and flexible turning make the workshop more clean, which meet modern factory beautiful, clean, modern standard.


    Features


    Convenient and high efficient

    Beautiful appearance

    Environment-friendly

    Long lifetime


    Technical Parameter


    Model

    BWP-30T

    Rated Load(t)

    30t

    Impacted rated load(t)

    45

    structure of frame

    steel plates welded beam structure

    Thickness of the steel plate

    14

    Cart weight(t)

    8.8

    Wheel load(t)

    7.7

    Ground requirement

    cement ground

    Table size(mm)

    5000x2200

    Height of the whole cart(mm)

    650

    Space from the ground(mm)

    50

    Wheels distance

    1700

    Axles distance

    4300

    Turning radius(mm)

    4300

    Turning type

    turning while driving without stop

    Control method for turning

    control button

    Turning structure

    mechanical

    Wheel diameter

    Ф400/4

    Wheel quality

    polyurethane wheels

    Running speed(m/min)

    0-12

    Brake principle

    electric magnetic force

    Operation method

    with wire or no wire

    Charger motor's installation

    installed on cart

    Function of charger motor

    automatic charging

    Warning equipment

    sound and light lamp


    Application

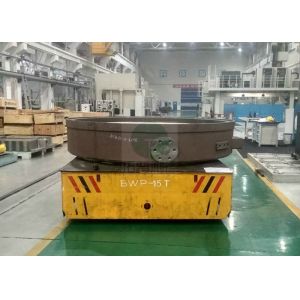

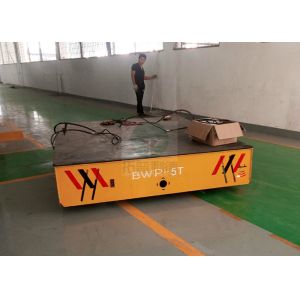

    Our steel floor steerable bogie can be widely applied in many fields, such as steel industries (steel coil, hot metal ladle, dies, molds, steel pipes, steel pates, steel bars and other steel parts transport), ship industries, petroleum industries, painting industries, precast concrete factories, quarry plants, transformer plants, turbine plants, paper making plants, coking plants, boiler plants, power station, textile plants, cement factories, machinery factories, construction sites, production line, workshop, warehouse and other fields for materials, workpieces, machines transport from one bay to another.



    Transportation Solution


    1 set load transfer trolley can choose the LCL container, More than 2 transfer trolley, please choose the FCL container. If the table width is beyond 2.23m, you need to choose the flat rack according to different length.



    Company Brief


    Xinxiang New Leader Machinery Co., Ltd is specilized in manufactuering all kind of material handling equipment with more than 14 year experience and our products have been exported to countries, such as US, Mexico, Thailand, Malaysia, Netherlands etc. Our products include material handling trolley,trackless transfer car, turntable, transfer table, steerable transfer car, winch, wheel, etc.
