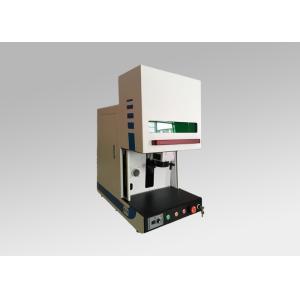

    Mini Table Type Metal Laser Fiber Marking Machine With Full Enclosed Cover

    Ask Lasest Price
    Brand Name : RISE LASER
    Model Number : RLF-20
    Certification : CE
    Price : Negotiation
    Delivery Time : 5-9 working days
    • Product Details
    • Company Profile

    Mini Table Type Metal Laser Fiber Marking Machine With Full Enclosed Cover

    Mini Table Type Metal Fiber Laser Marking Machine with Full Enclosed Cover

    Main Features:

    1. Small size and compact structure, convenient to move.

    2. Long lifespan of fiber laser source: 100 000 hours
    3. good scanning galvanometer, with good seal, small volume, compact.
    4. good Scaps controller, USB interface, swift and stable transmission, can work with a Laptop.
    5. High Precision: upto 0.0012mm, bring you the fantastic and satisfied marking effect.
    6. Superior Laser Beam: the definition is 1 micron, 10 times as that of traditional products.
    7. No Consumables: One Fiber marker can work for more than 10 years without any consumables.
    8. Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products.
    9. The fiber laser beam no need to adjust the laser optical path.
    10. Low consumption: <400W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental.
    11. Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effectin YAG laser, no maintenance.

    Technical Parameters of full enclosed fiber laser marking machine:

    laser power

    20W/30W/50W

    Laser Wavelength

    1064nm

    marking area

    110mm*110mm(optional)

    marking depth

    ≤1.2mm

    marking speed

    800 standard characters/second

    Minimum Line Width

    0.012mm

    Minimum Character

    0.15mm

    Repeated Precision

    ±0.003mm

    Life-span of Fiber Laser Module

    100,000hours

    Beam Quality

    M2 <1.5

    Focus Spot Diameter

    <0.01mm

    Output Power of Laser

    10%~100% continuously to be adjusted

    System Operation Environment

    Windows XP / W7--32/64bits / W8--32/64bits

    Cooling Mode

    Air cooling--Built-in

    Temperature of Operation Environment

    15°C~35°C

    Power Input

    220V / 50HZ / single phase or 110V / 60HZ / single phase

    Power Requirement

    <400W

    Communication Interface

    USB

    Net Weight/gross weight

    74KG/80kgs

    Machine Dimension/after package

    768*743*550MM/980*720*945MM


    Main Parts of Fiber Laser Marking Machines:

    High speed Galvanometer

    Emergency Button

    Press it when the machine meets error, machine will stop working imedieately to avoid losses.

    Lift door

    Close the door when machine working, easy to operate and safety.


    Applicable Industries:

    Mainly applied to the higher marking precision such as mobile phones buttons,plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication produgacts, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, lugge buckle, cooking utensils, stainless steel products and other industries.

    Applicable Materials:

    Metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.
