    Fresh Fruit And Vegetable Processing Machinery Cleaning Equipment High Efficiency

    Ask Lasest Price
    Brand Name : Keysong
    Model Number : KS4000
    Certification : CE ISO
    Price : USD 8000-30000 per set
    Supply Ability : 20 sets per month
    Delivery Time : 15 working days after receiving the deposit
    • Product Details
    • Company Profile

    Fresh Fruit And Vegetable Processing Machinery Cleaning Equipment High Efficiency

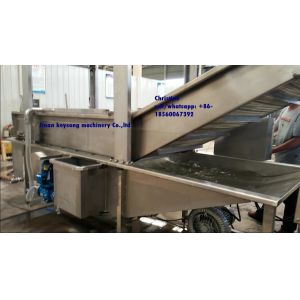

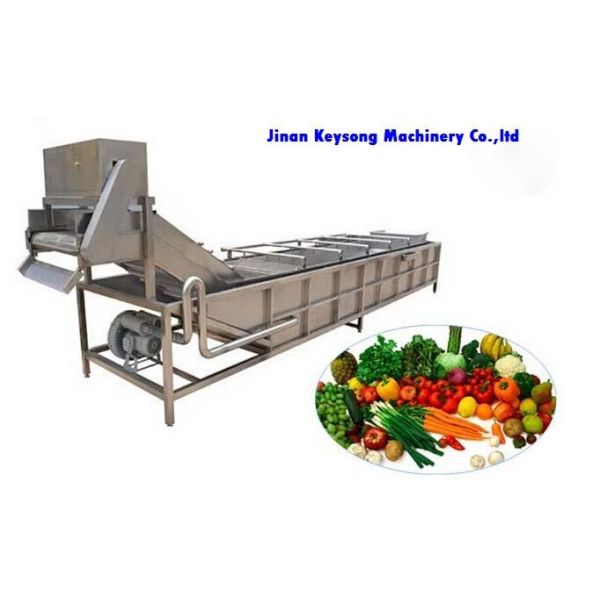

    High Pressure Air Bubble Washing Machine For Fruits and Vegetables


    Specifications

    Bubble Washing Machine
    1 Ease to operate, install and maintenance
    2. Cleaning thoroughly. Low noise
    3. Large capacity


    Working Principle of Bubble washing machine

    1. It uses bubble, cycle surfing, high pressure spray washing way combinations, to make
    the vegetables or herbs get a full range of thorough cleaning;
    2. After washing, vegetable or herb or fruit will go through an elevator, and at the same time,
    high pressure spray will wash the them again.
    3. Flow adjustment valve next to the machine can control the materials forward speed, easy
    operating

    Description

    Bubble Washing Machine For Various Fruits And Vegetables is designed for the raw material for different shapes. High airflow mixed water washes the raw material to avoid colliding with each other. The materials are washed by the high pressure water, intensity, high effectively, and continuous operations. It is an indispensable washing device for the fruit and vegetable or seafood processing before quick freezing. Complete stainless steel SUS 304, Portion water recycling and stepless speed regulation.


    Technical parameter of ginger washing machine
    Fruit vegetable washing Machine technical parameter:

    ModelPowerCapacity
    (kg/h)
    Weight
    (kg)
    Dimension
    (mm)
    KS-25000.75kw/380V400-5003802800*1200*1400
    KS-30000.75kw/380V700--10004603000*1200*1400
    KS-35001.1kw/380V1000-12005403500*1200*1400
    KS-40002.57kw/380v1300-15006404000*1200*1400
    KS-50003.37kw/380v2300-2500800

    5000*1200*1400


    Material


    The tank is made of the stainless plate of high quality with the thickness of 1.5mm

    Conveyor belt is composed of stainless chain and stainless mesh belt, the mid-width is 900mm

    Protect plate is made of the stainless plate and punching plate with the thickness of 1.5mm

    Steadier is made of 50×50×1.5 and 40×40×1.5 stainless square pipe

    Guide course is made of hem stainless plate.



    Features of Bubble washing machine

    1. Wash Dirt

    Machine washes dirt attached on the surface of vegetable and fruits, by air bubble
    washing.

    2. Reduce Damage

    Machine imitates human washing motion and avoids collision or friction damages
    Caused by human washing.

    3. High Efficiency

    Efficiency will be increased because this machine change human labor to mechanized process.






    Note

    1.It can be connected to the next processing step like cutting, drying, or packing in a whole
    processing line.

    2. The size can be made larger as per clients' needs, and we also provide OEM service.


    Our Services

    Pre-sale service:

    1 Recommend the most suitable machine for customers,or design the machine
    specially according customers demand
    2 strictly control easy production line and easy parts,to ensure machine quality.
    3 every machine is tested before delivery,to ensure machine function well.

    After-sale service:

    1 one year warranty
    2 lifelong free technical support and spare parts support
    3 help customers solve problem rapidly

    remark:Quality guarantee term is for one year.Malfunctions which are Caused by machine-self
    and quality will be responsible for our manufacturer. Other malfunctions which are caused by
    operation mistakes, man-made problems, etc will be responsible for clients-self.
