6*1mm Double Wall Bundy Tubes Galvanized Coated Tube For
Refrigerator Freezer Compressor
Description:
1. Material:bao steel strip,low carbon
2. Main use:widely used in
refrigeration,compressor,condenser,freezer,air conditioning etc
3. Outer diameter:5-12mm
4. Wall Thickness:0.5-1.0mm
5. Standard:ASTMA-254
6. Certification:also passed ISO9001quality attestation system and
ISO14001 Certificate of Environment Management System
7. Surface treatment:Galvanized, Copper coated
8. Feature:soft and easy to bend
9. Tensile strength:more than 290Mpa
10. Yield strength:more than 180Mpa
11. Elongation:more than 25%
12. Place of origin:jiangsu province,China
13. Port of loading:shanghai,china
14. Package:plastic cloth coil,wooden box,iron pallet etc
15. Delivery:Within 45 Days
Specification:
| specification | dimensional tolerance | Mechanical properties |
| Diameter tolerance | Wall thickness tolerance | tensile strength | yield strength | elongation |
| bundy tube 6*1mm | ±0.08 | ±0.08 | ≥290Mpa | ≥180Mpa | ≥25% |
Single-Wall Tubes
Main Characteristics: Excellent mechanical property, extremely good
inside cleanness and nice foundation for late process. The tube can
be provided in coils or cut to length and mainly for refrigeration
industry and auto industry. It is an ideal material for all kinds
of fluid and gas transmission tubes. All kinds of surface
treatments are available according to the need from the customers.
Double-Wall Tubes
Main Characteristics: Fine inside cleanness, high strength, nice
elongation, good foundation for late process , anti leakage, anti
high pressure explosion, excellent anti corrosion power after
surface treatment. It is an ideal material for tubes of
condensation , evaporation and autos.

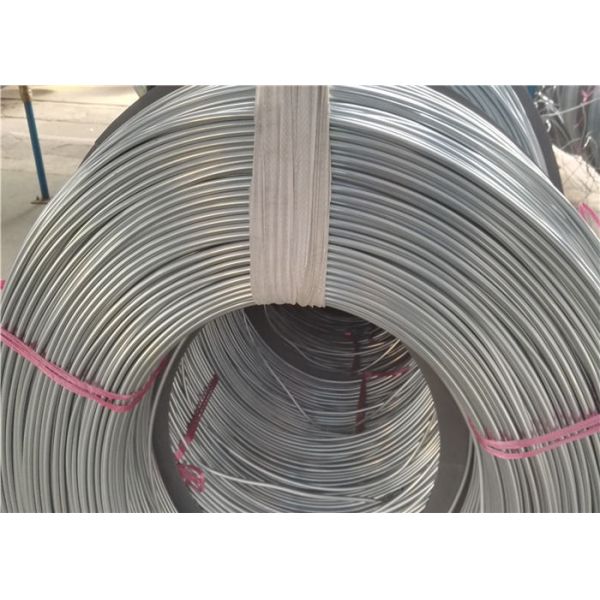

The tube can be provided in coils or cut to length -- plain/oil
coated bundy tube, galvanized bundy tube, copper coated bundy tube,
PVF coated bundy tube, etc.
