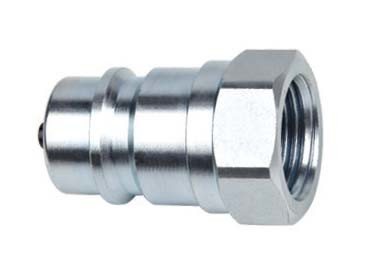

General Purpose Quick Release Hydraulic Connectors Carbon Steel LSQ-S1 SAE Thread

LSQ-S1, PLUG, ISO7241-A Hydraulic Quick Couplings in General Purpose

Descripton:

LSQ-S1 CLOSE TYPE HYDRAULIC QUICK COUPLING(STEEL)

Applications: Construction equipment, forestry equipment, agricultural machinery, oil tools, oil equipment steel mill machinery,and other demanding hydraulic applications.

Specifications:

LSQ-S1 Series couplings features:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3. Critical parts are hardened for durability.
4. Dependable ball-locking mechanism holds the mating halves together.
5. Socket and plug are precision machined from solid bar stock.
6. LSQ-S1 series conforms to the standard of ISO7241-A.
7. Compatible with PARKER 6600 Series,FASTER ANV Series,AEROQUIP 5600 Series and HANSEN HA 15000 Series.

How to USE:

1. Before connecting clean the mating parts of the couplings to avoid contamination in the circuit.
2. To couple pull back the sleeve of the female coupling, align the female with the male coupling

and push one into the other until both halves are fully connected and release the sleeve.
3. To uncouple pull back the sleeve of the female coupling, pull out the mating half.

Performance:Test Fluid:Oil-200SUS.1GPM=3.78L/Min,1PSID=0.0069MPa.

LSQ-S1 Series(1/4",3/8",1/2",3/4",1") LSQ-S1 Series(11/4",11/2",2")

  Zhejiang Songqiao Pneumatic & Hydraulic Co., Ltd. formerly Ningbo Welcome Pneumatic and Hydraulic Co., Ltd. since 1983 year as one of Chinese largest manufacturer of quick coupling.

  Over 300 advanced production equipments and it has professional automatic processing and assembly line, it specializes in producing hydraulic quick couplings, pneumatic quick couplings and pneumatic couplings. Complete and professional fit ISO7241-2 test equipments that providing customers with high quality products, and OEM for international first-class brand.

  The company passed the ISO9001 quality management system certification, also have been honored as National high-tech enterprise, Zhejiang Trustworthy Enterprise, Ningbo Enterprise Technology Center. Obtain technology progress award, Ningbo safety production standard enterprise, more than 100 national patents.

Songqiao brand products can be applied widely to the joints and terminals of mechanical equipments, fire protection, shipping, military equipments, medical, aviation, metallurgy, chemical and power equipments. The company have 38 sales branch in China, and our products are exported to America, Europe, Oceania, Asia that more than 150 countries.
