    HOT SALE Deep Sea Controller DSE 501K / Control Panel

    HOT SALE Deep Sea Controller DSE 501K / Control Panel

    1)INTRODUCTION:

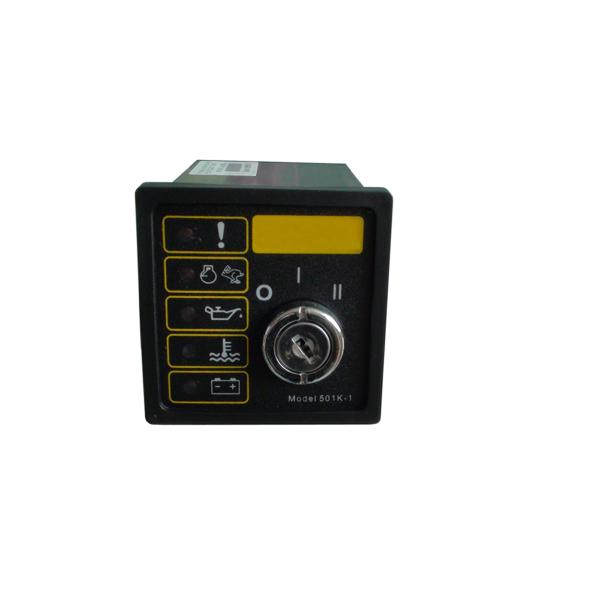

    DSE501K is a Manual Engine Control Module, which has been designed to manually control the engine via a key switch on the front panel. The module is used to start and stop the engine, indicating fault conditions; automatically shutting down the engine and indicating the engine failure by LED giving true first up fault annunciation.


    2)SPECIFICATION:


    A. DC Supply----9~33V continuous.


    B. Alternator Input Range----15~305V AC RMS


    C. Alternator Input Frequency---- 50~60Hz at rated engine speed.


    D. Magnetic Input Range----0.5V~+/-80V


    E. Magnetic Input Frequency----2300Hz~6000Hz


    F. Start Relay Output----16 Amp DC at supply voltage


    G. Run Relay Output----16 Amp DC at supply voltage


    H. Alarm Output----1Amp DC at supply voltage


    I. Operating Temperature Range----- -30~70celsius

    3)TECHNICAL DATA:


    Power Supply9 to 33 Vdc Continuous
    Cranking Dropouts:Able to survive voltage dips during cranking. Without
    the need for internal batteries.
    Alternator Input Range15 - 305 V AC RMS
    Alternator Input Frequency:50 - 60 Hz at rated engine speed
    Magnetic Input Range0.5 V to +/- 80 V
    Magnetic Input Frequency2300Hz to 6000 Hz at rated engine speed
    Start Relay Output:16 Amp DC at supply voltage
    Run Relay Output:16 Amp DC at supply voltage
    Alarm Output1 Amp DC at supply voltage
    Operating Temperature Range:-30 to +70°C

    4)We also provide other relevant models as follows:


    Item NO.DSE501KDSE701ASDSE701MSDSE702ASDSE702 MSDSE704DSE710DSE720DSE5110DSE5120DSE5210
    Relevant Item NO.DSE501KDSE701ASDSE701MSDSE702ASDSE702 MSDSE704DSE710DSE720DSE5110DSE5120DSE5210
