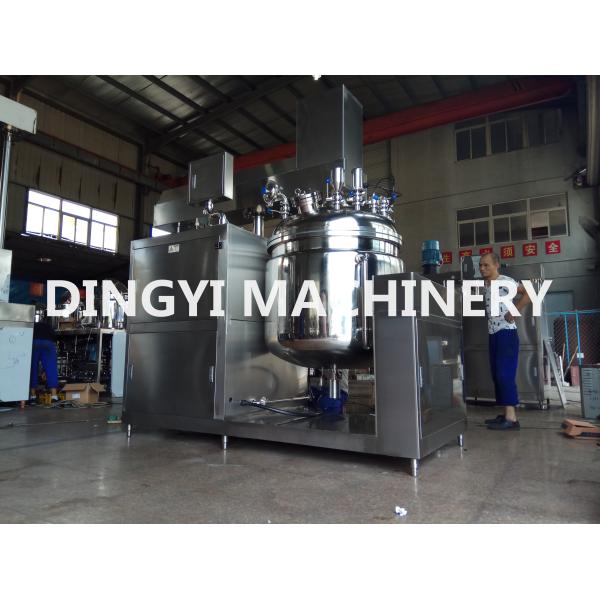

steam heating SS316L Vacuum Planetary Mixer with PLC control for
shower gel
Product description
1. High Quality Vacuum Planetary Mixer: it is a high efficient
German compound homogeneous emulsifier with shear teeth of special
structure, shearing more times. its emulsification effect for
materials which goes through the emulsifier is dozens of times than
that of common ones.
2. Precision motion mechanism and cooling system: high efficiency,
power loss is small, heterogeneous devices can work long time, the
application of special process requirements
3. Dead space-free multi-functional flow disturbance stirring
system: it may effectively improve the stirring rate and mixing
effects;
4. Production of non-dead, out of less material residue: the
homogeneous emulsifier type on the same machine, better than the
other types of emulsion;
· Capacity:350L
· Material: material contact part SS316L, material non-contact part
SS304.
· Customized service: to provide and design total solution as per
customer URS
Vacuum Emulsifying Machine including:
· Vacuum emulsifying main machine
· Pre-mixing tank for water and oil material
· Vacuum system
· Hydraulic system
· Control system
· Platform made from SS304
Vacuum emulsifying main machine:
· Slow mixer 0-40rpm with PTFE scraper
· Homogenizer 0-3500rpm (rotor and stator can adjust space)
· Heating by steam or electricity
· Pressure: chamber-0.09Mpa to 0.1Mpa, jacket 0.3Mpa for steam
(standard type)
· Upper cover lifting by hydraulic
· Safety limit switch for safety operation
· Upper cover connection: Liquid feed inlet with stainless steel
pipe filter, solid material inlet, vacuum inlet, compressed air
inlet, breaking vacuum inlet, sight glass, CIP cleaning head,
discharging port, dustproof respirator.
Water and oil pre-mixing tank
· High shear mixer 960rpm or slow mixer 60rpm
· Heating by steam or electricity
· Pipeline for material transfer to main emulsifying machine
Vacuum system:
· Water ring type vacuum pump or oil type vacuum pump
· Safety valve for protecting the Water ring type vacuum pump
After finish one batch, customer can choose positive pressure or
rotor pump for material out.
Model
| Capacity | Emulsifying motor | slow mixer motor | Machine dimension | Total power(KW) |
KW | RPM | KW | RPM | LENGTH | WIDTH | HEIGHT | Lifting hight |
| ZRJ-500 | 500L | 7.5 | 1150-3500 | 2.2 | 10-40 | 4000 | 2800 | 2700 | 4000 | 17.6 steam heating |
| ZRJ-350 | 350L | 7.5 | 1150-3500 | 2.2 | 10-40 | 3700 | 2650 | 2550 | 3600 | 29.3 steam heating |
