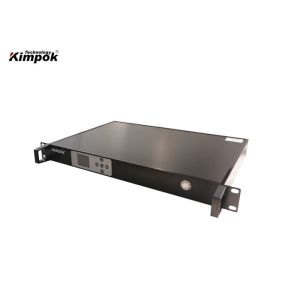

    Wireless Digital Receiver Ground Station 1.5U Real-time Transmission

    Ask Lasest Price
    Brand Name : Kimpok
    Model Number : KP-HDR50
    Certification : CE/FCC/ROHS
    Price : Negotiaiton
    Payment Terms : T/T
    Supply Ability : 3,000pcs per month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    Wireless Digital Receiver Ground Station 1.5U Real-time Transmission

    Wireless Digital Receiver Ground Station 1.5U Real-time Transmission



    Feature:


    1) COFDM HD/SDI 1080P receiver; Matched with HD/SDI 1080P transmitter
    2) Supported multi-socket output;
    3) Rack design,easy to installed in Car;
    4) Transmit video and audio signal simultaneously;
    5) Can customized with RS485/RS232 data control together;

    6) Support NLOS video transmission receiving;

    7) Support high speed moving transmission receiving;

    8) Latest technology: COFDM modulation


    Specifications:


    VoltageAC220V±20V, DC14V~DC16V
    Current≤1.A / DC12.5V
    Receiving sensitivity≤-102dBm /4MHz,
    ≤-95dBm /8MHz
    BERBER≤1×10-4
    Frequency input range300MHz~4400MHz (Optional)
    Output interfaceN(type),Dual antenna diversity reception technology
    RF bandwidth2/2.5/4/8MHz(adjustable)
    ModulationCOFDM
    ConstellationQPSK,16QAM,64QAM
    FEC1/2, 2/3, 3/4, 5/6, 7/8
    Carrier2K
    Guard Interval1/4, 1/8, 1/16, 1/32
    Video formats and amplitudePAL/NTSC, 1Vp-p/75Ω
    Video compressionH.264/MPEG-2
    Video output interfaceBNC,HD
    Video channel characteristic

    Differential gain DG≤1.5%

    Differential phase DP≤1°

    System distortion degree
    Decryption modeAES
    Audio outputLeft and right channel and stereo
    Dimension480*220*44mm
    Weight3.5kg
    Type

    mobile cofdm hd video transmitter and receiver long range
