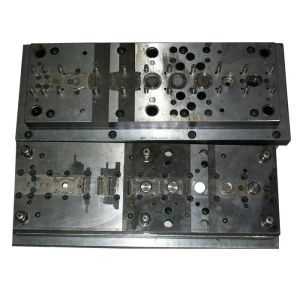

High Precision Draw Metal Stamping Dies Pressing Mold Heat Treatment 0.5mm Thickness

High precision draw stamping die ,pressing mold , metal punch die

Progressive stamping is a metalworking method that can encompass punching, coining, bending and several other ways of modifying metal raw material, combined with an automatic feeding system.

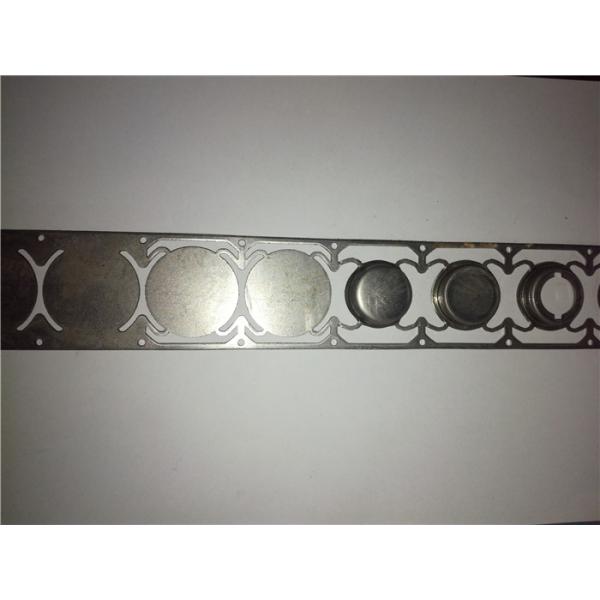

The feeding system pushes a strip of metal (as it unrolls from a coil) through all of the stations of a progressive stamping die. Each station performs one or more operations until a finished part is made. The final station is a cutoff operation, which separates the finished part from the carrying web. The carrying web, along with metal that is punched away in previous operations, is treated as scrap metal. Both are cut away, knocked down (or out of the dies) and then ejected from the die set, and in mass production are often transferred to scrap bins via underground scrap material conveyor belts.
The progressive stamping die is placed into a reciprocating stamping press. As the press moves up, the top die moves with it, which allows the material to feed. When the press moves down, the die closes and performs the stamping operation. With each stroke of the press, a completed part is removed from the die.

• Bending - the material is deformed or bent along a straight line.
• Flanging - the material is bent along a curved line.
• Embossing - the material is stretched into a shallow depression. Used primarily for adding decorative patterns. See also Repoussé and chasing.
• Blanking - a piece is cut out of a sheet of the material, usually to make a blank for further processing.
• Coining - a pattern is compressed or squeezed into the material. Traditionally used to make coins.
• Drawing - the surface area of a blank is stretched into an alternate shape via controlled material flow. See also deep drawing.
• Stretching - the surface area of a blank is increased by tension, with no inward movement of the blank edge. Often used to make smooth auto body parts.
• Ironing - the material is squeezed and reduced in thickness along a vertical wall. Used for beverage cans and ammunition cartridge cases.
• Reducing/Necking - used to gradually reduce the diameter of the open end of a vessel or tube.
• Curling - deforming material into a tubular profile. Door hinges are a common example.
• Hemming - folding an edge over onto itself to add thickness. The edges of automobile doors are usually hemmed.[5]

Piercing and cutting can also be performed in stamping presses. Progressive stamping is a combination of the above methods done with a set of dies in a row through which a strip of the material passes one step at a time.

Why us ?
1. Good Material
2. Hight precision. The precision can reach 1-4μm,Ra 2μm.
3. Rational design. Accurate layout is good for produce and saving the product’s raw material.
4. Rational construction , easy accessibility. Good for maintenance and repair
5. Reasonable arrangement of technology
6. Right Heat treatment
7. Best suitable parts clearance
8. Standard component choose famous brand.
9. Strict Qc quantity control .
10. Timely delivery and best service

To get quick response, please contact us by mail directly
Q: How can I get quotation quickly
A: Please send your inquiry and technical details to email kellylan10@hotmail.com Our sales Consultand will contact you in 24hrs on business time.
Q: How can I get technical support from you when we are designing a new product?
A: Please feel free to contact with linhai email .There will be an exclusive engineer available for you.
Q: How can I contact you when I have some suggestion about your products or service?
A: Please feel free to contact email or phone.We will follow on your suggestion and try our best to make you satisfied.


Stamping die details:

2006,Established in Xiamen, METS is a professional hardware company specialized in mould design, mould manufacturing of contact and machine shell, automotive, electronics, LED lampshade, lead frame and lamination core(stator and rotor) etc. As well as precision metal stampings production.Our engineer, design, construct and validate highly precise metal stamping dies and tooling system solutions. Our team of experts partners with leaders across industries to provide tooling solutions that use high-strength materials, demand tight tolerances and require short lead times

METS has been focusing on the R&D of high speed precise progressive die as well as stamping production since its establishment.


Process technology capability:

A. Hight precision. The precision can reach 1-4μm,Ra 2μm.

B: Zero loss of material use.

C: The min. space between connectors is 0.2mm
D: The pressing speed can reach 800SPM
E: The rate of hole diameter and thickness is 0.85:1

F: Standard component use famous brand
G: The stamping material thickness is 0.05-2.0mm

H:Rational construction , easy accessibility. Good for maintenance

We stamp metal parts ranging from small precision parts, such as electronic equipment and musical instruments, to large precision components, including processing equipment and architectural components that are decorative and functional. All-New Stamping has the capability to work in quantities from prototype runs to full production runs.

Our stock thickness for our ferrous and non-ferrous metals ranges from 0.01mm to 2mm and the stock width ranges from 10mm to 1000mm with pre-plated and finishing options. We also work with a complete range of materials to offer customers a large choice in specifications, including:

Steel
Aluminum
Stainless Steel
Plastics
Copper
Brass
Specialty Metals
