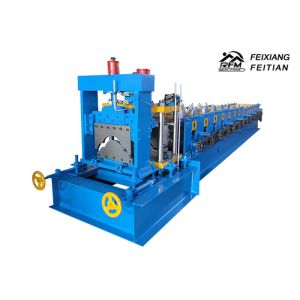

    312 Roof Tile Roll Forming Machine , PLC Control Ridge Cap Roll Forming Machine

    Ask Lasest Price
    Brand Name : Feixiang
    Model Number : FX312
    Certification : CE BV ISO
    Price : Please check with the supplier
    Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram
    Supply Ability : 30 sets per week
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    312 Roof Tile Roll Forming Machine , PLC Control Ridge Cap Roll Forming Machine

    312 Roof Tile Roll Forming Machine , PLC Control Ridge Cap Roll Forming Machine


    1. Products description


    The finished products are widely used in garden-like factories, tourist scenic spots, pavilions and pavilions, hotel villas, exhibition halls, resorts, resorts and so on. It has many advantages, such as beautiful scenery, Home and other architectural and outdoor decoration.


    2. Main Material used

    Material: Color steel ,galvanized steel or Aluminum
    Feeding width:410mm
    Material thickness:0.3-0.8mm
    Yield strength:235-450mpa


    3. Machine composition


    No.

    Name

    Unit

    Qty

    1

    Decoiler

    set

    1

    2

    Main Machine for roll forming

    set

    1

    3

    Control System(PLC)

    set

    1

    4

    Pressing System

    set

    1

    5

    Cutting System

    set

    1

    6

    Output Table

    set

    1


    4. Main parameters

    Model number

    312 Roof Tile Roll Forming Machine , PLC Control Ridge Cap Roll Forming Machine

    Rolled material

    0.3 - 0.8mm thickness, aluminum sheet, galvanized sheet, colored steel sheet

    and various steel plates

    Effective width

    312mm

    Feeding width

    410mm

    Forming steps

    12 stations

    Roller

    45# forged steel, hard chrome plating within 0.05mm

    Diameter of shaft

    80mm

    Main motor power

    5.5 kw

    Pump power

    3 kw

    Sprocket chain

    1 inch

    Drive type

    by chain

    Cutting Blade

    Cr12, heat treatment 60-62°C

    Frequency Converter

    It has the advantage of slowing down before cutting,

    to ensure the length accuracy

    (±1mm, far better than industrial standard ±3mm).

    component

    1 set of manual decoiler,1 set of main roll forming machine,

    1 set of computer control cabinet,

    1 set of hydraulic System,1 set of cutting mechanism,

    1 set of counter,1 set of output table

    Payment terms

    cash,T/T,L/C.

    Delivery time

    30 working days
