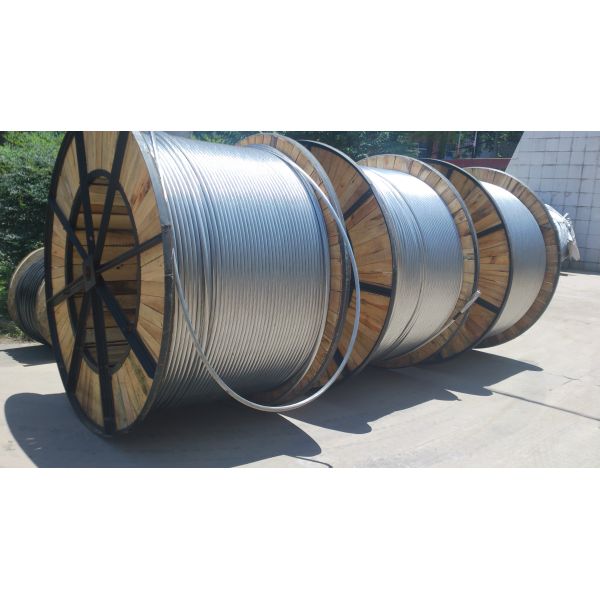

AAAC Overhead Line Conductor DIN48201 AA6201 Energy Net Transmission Cable

    Buy cheap AAAC Overhead Line Conductor DIN48201 AA6201 Energy Net Transmission Cable from wholesalers

    Buy cheap AAAC Overhead Line Conductor DIN48201 AA6201 Energy Net Transmission Cable from wholesalers
    • Buy cheap AAAC Overhead Line Conductor DIN48201 AA6201 Energy Net Transmission Cable from wholesalers

    AAAC Overhead Line Conductor DIN48201 AA6201 Energy Net Transmission Cable

    Ask Lasest Price
    Brand Name : UNI-CABLES
    Model Number : AAAC
    Certification : ISO9001
    Price : USD$3100-3300 Per MT
    Supply Ability : 100000MT per Month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    AAAC Overhead Line Conductor DIN48201 AA6201 Energy Net Transmission Cable

    German Standard AAAC Conductor DIN48201 Overhead Energy Net Transmission Cable


    APPLICATION

    Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio; affords better sag characteristics. Aluminum alloy gives AAAC higher resistance to corrosion than ACSR.


    Product Construction

    AAAC cable is a concentric lay-stranded bare conductor consisting of Aluminum alloy 6201-T81 wires available in both single layer and multi-layer constructions.


    Product Specifications

    AAAC cable meets or exceeds industry requirements per DIN48201


    Product Features

    AAAC cable offers better sag performance due to the high strength to weight ratio provided by the 6201-T81 alloy.


    CABLE STANDARDS
    DIN48201


    Bare Overhead Conductor
    Type:AAAC-6201
    Rated Voltage:500KV,220KV,110KV,35KV,10KV
    Standards:GB/T1179, IEC60189, ASTM-B399, BS3242, DIN48021,SS424 0814
    Structure Chart:
    Cutline
    Product Feature:Conductor:
    Concentric Lay Stranded Hard Drawn Aluminum 6201-T81 Wire
    Applications:Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum-alloy to
    achieve a high strength-to-weight ratio; affords good sag characteristics. Aluminum-alloy gives 6201-T81 gives AAAC higher resistance to corrosion than ACSR.

    1.Max. permission operating temperature shall not exceed 80℃
    2.Ambinate temperature shall not lower than -20℃
    3.The laying bending radius shall not less than 12 times the outer diameter of cable.

    DIMENSIONS

    DIN Spec DIN48021
    All Aluminum Alloy Conductors ( AAAC )
    AreaEquivalent
    Copper Area
    StrandingOverall
    Diameter
    WeightRated
    Strength
    Maximum DC
    Resistance
    at 20oC
    NominalActual
    mm2mm2mm2No/mmmmkg/kmkNΩ /km
    1615.8987/1.75.1434.442.09
    2524.25137/2.16.3666.771.369
    3534.36187/2.57.5949.60.9665
    5049.48267/3.0913513.820.6711
    5048.362519/1.8913313.50.6902
    7065.823519/2.110.518118.380.5071
    9593.274919/2.512.525626.050.3578
    1201176119/2.81432232.680.2852
    150147.17737/2.2515.7540641.090.2273
    185181.69537/2.517.550050.730.1842
    240242.512761/2.2520.2567067.740.1382
    300299.415761/2.522.582783.630.1119
    400400.121061/2.8926.011104111.760.08377
    500499.826261/3.2329.071379139.60.06706
    625626.232991/2.9632.561732174.90.05365
    800802.142191/3.3536.852218224.020.04188
    1000999.752591/3.7441.142767279.220.0336
