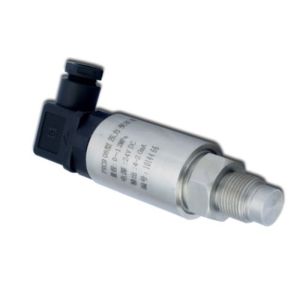

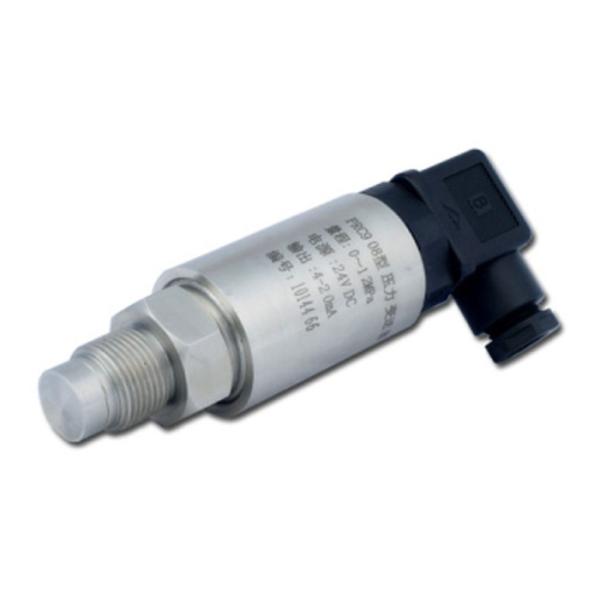

Liquid Gas Pressure Level Transmitter High Tempearture

Liquid and gas level pressure transmitter, high tempearture pressure transmitter , 100Mpa, 400℃

General Description:

This is no cavity, flat type pressure transmitter, is ideal for high temperature pressure transmitter in the industries: petroleum, chemical process, metallurgy, pharmacy, power grid, etc.

Application field

The pressure transmitters are widely applied in water plant, oil refinery, sewage treatment plant, construction material, metallurgy, petroleum, chemical, pharmacy, and machinery fields.

Product features

• With inversion and current-limiting protection;
• Remote control adjustment, vibration resistant, shock resistance;
• Temperature compensation;
• Overload and antijamming capability;

Technical index

• measurement medium: liquid, gas, steam and oil
• measurement range: surface pressure(G)——maximum (0～60)MPa, minimum(0～0.5)KPa;absolute pressure(A)——maximum (0～60)MPa, minimum(0～5)KPa;negative pressure(B)——(-100KPa～60)MPa,minimum(-0.2～0.2)KPa;
• accuracy level: 0.1%F•S.0.25%F•S.0.5%F•S;
• long term stability: less than0.25%F•S/year,less than0.5%F• S/ year;
• overload range: 1～2 times of range
• operating temperature: -40℃～80℃; compensation temperature: -20℃～70℃;
• level of protection: IP65
• power supply voltage: 15-36VDC(nominal voltage, 24VDC)
• output signal : (4～20)mA(2/3 wire).(0-10/20)mA.(0-5)V.(1-5)V.(0-10)V;

Comparison table:

P5 sereis explosion pressure transmitter

Pressure range: -0.1 Mpa to 100 Mpa

Connect: thread M20 * 1.5, G1/2, G1/4, NPT1/2, NPT1/4

Media temperature: -40 ~ 85℃

Overload pressure: 2 times of rated pressure

Accuracy: 0.25%, 0.5%

Power supply: 24V DC

Output: 4-20mA

Protection: IP65

Explosion protect: Exia IICT5, Exd II CT6

Features: pressure transmitter by ceramic pressure resistance transducer

P2-1 sereis with diffused silicone transducer

Pressure range: -0.1 Mpa to 100 Mpa

Connect: thread M20 * 1.5, G1/2, G1/4, NPT1/2, NPT1/4

Media temperature: -40 ~ 85℃

Overload pressure: 2 times of rated pressure

Accuracy: 0.25%, 0.5%

Power supply: 24V DC

Output: 4-20mA

Protection: IP65

Features: pressure transmitter by diffused silicone transducer

P2-1G sereis with diffused silicone transducer for high temperature

Pressure range: -0.1 Mpa to 100 Mpa

Connect: thread M20 * 1.5, G1/2, G1/4, NPT1/2, NPT1/4

Media temperature: -40 ~ 400℃

Overload pressure: 2 times of rated pressure

Accuracy: 0.25%, 0.5%

Power supply: 24V DC

Output: 4-20mA

Protection: IP65

Features: pressure transmitter by diffused silicone transducer for high temperature media
