    26 Inch Snow Carbon Fat Bike Frame Lightweight 190 X 12 Mm Thru - Axle Dropout

    Ask Lasest Price
    Brand Name : ORISUN
    Model Number : CFM-248
    Certification : EN,ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C At Sight
    Supply Ability : 20000 units/month
    Delivery Time : 20-25 days
    • Product Details
    • Company Profile

    26 Inch Snow Carbon Fat Bike Frame Lightweight 190 X 12 Mm Thru - Axle Dropout


    26erx4.80 Lightweight Carbon Fat Bike Frame Fork Dropout 190mmx12 Snow Bike

    Features:


    1. 26"x4.80 Lightweight Carbon Fat Bike Frame only 1290±40g grams for 18".

    2. Rear Dropout 190 x 12 mm thru-axle, BB GXP120mm, with maximum tire 26"x4.80

    3. Sizes available 16", 18", 20".

    4. OEM/ODM orders are acceptable.

    5. 2 years warranty

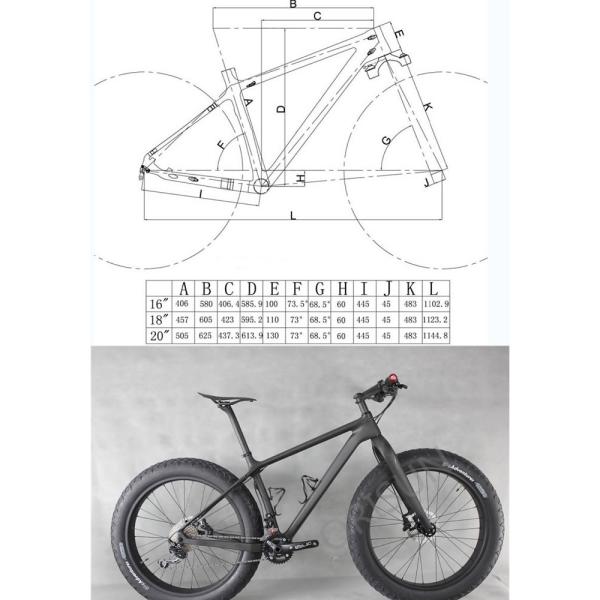

    Technical Data:

    Product26erx4.80 Carbon Fat Mountain Bike Frame/Snow Bike Frame
    MaterialFull Carbon Fiber, Toray T700/T800
    ModelCFM-248
    Wheel Size26er
    Maximum Tire26erx4.80
    Rear Dropout190x12 mm thru-axle
    Bottom BracketGXP 120mm
    Head tubeTapered(44/56mm)
    Seat post OD31.6mm
    Front DerailleurPull Up
    Head tube angle68.5°
    Seat tube angle73.5°
    Stack605 mm(18")
    Reach423 mm(18")
    RC445mm
    RoutingInternal Cable Routing
    BrakeDisc(Post Mount, Hidden)
    Sizes availableAll popular sizes available
    Weight:1290±40g grams(18"), 520g±20g (Fork)
    Bottle Cage Space2
    Accesories190x12 thru-axle included
    Carbon Rigid Forkavailable
    Weave3K/12K/UD
    OEM/ODMAcceptable
    PaintingCustomized Painting/Logo acceptable
    Warranty2 years
