DFAC 4x2 5 Ton Light Duty Integrated Recovery Tow Truck Wrecker Euro III Emission

DFAC 4x2 5 Ton Light Duty Integrated Tow Truck Euro 3 Emission For Cars SUV Road Recovery

DFAC 4x2 5 Ton Light Duty Integrated Tow Truck Euro 3 Emission

Specifications

(1) 4x2 WreckerTruck.
(2) 2 Axle
(3) Engine Displacement 2.672L
(4) Pulling Capacity 700 kg
(5) Euro III emission.
(6) Horse Power 90hp
(7) Certification: ISO9001 CCC,SGS

The wrecker tow truck (also called wrecker, tow truck, breakdown truck, recovery truck or a breakdown lorry) is a vehicle used to transport motor vehicles from city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles,
Towing services are generally provided by an emergency road service operator. Vehicles are often towed in the case of breakdowns or collisions, or may be impounded for legal reasons.
Customers can choose to install crane on the truck according to their demands.

Technical Parameters

Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	5995x2300x2250
Vehicle Main Dimensions	Wheel base (mm)	3300
Weight in KGS	Tare Weight(KGS)	37000
	Front axles loading capacity(KGS)	1x1800
	Rear axles loading capacity(KGS)	1x2965
Engine	Brand	YUCHAI
	Model	YC4F90-30
	Type	4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	90 HP
	Emission standard	Euro III
Gearbox	5 forward and 1 reverse gear
Steering	power steering
Clutch	Reinforced diaphragm clutch, diameter 430mm
Tire	7.00-16

Specialized Device

The Parameters of Dognfeng 4X2 5MT Wheel-Lift Type Boom Truck
Overview
Name	Wheel-Lift Type Boom Truck
Dimension(LxWxH)	5990X1960X2380(mm)
Total Mass	8050Kg
Rated Payload	5000Kg
Kerb Weight	3050Kg
Passenger	3
Approach/Departure Angle	19/15
The Parameters of Chassis
Manufacture/Model	Dongfeng/EQ1060TJ20D3
Driving Type	4*2 left/right hand drive
Wheel Base	3300 mm
Gearbox	Six speed lever with five speed forward and one reverse, manual
Front/Rear Track	1506/1466(mm)
Tyre	7.00-16
The Number of Tyre	6+1(spare tyre)
Front/Rear Suspension	1032/1658(mm)
Leaf Spring Number	8/9+5, 6/8+4
The Paremeters of Engine
Manufacturer/Model	Cummins/CY4102-C3F
Rated Power	95hp/70kw
Fuel Type	Diesel oil
Displacement/Capacity	3856ml
Emission Standard	Euro3
Cylinder	Straight/4/intercooling
Max. torque	560N.m
Velocity	3200rpm
The Parameters of Equipment
Boom	2 sections, max. capacity 4 ton, remote control function is optional.
Winch	hydraulic pressure winch, 25 meters steel wire with lifting hook
Wheel Lift	max. lifting capacity 4 ton
Other	construction alarm,amplifer, rear working lighting, box for washing hands, U shape device for holding tyres, 5 sets supporting forks, supporting fork stand, 2 pcs chain and hook, accessory lightings assambly, imported hydraulic pressure components, multi parts compartment, uniform control devices on both sides.
*The above parameters are only for reference. For more specific requiremets suiting your case, please contact me. Thanks!

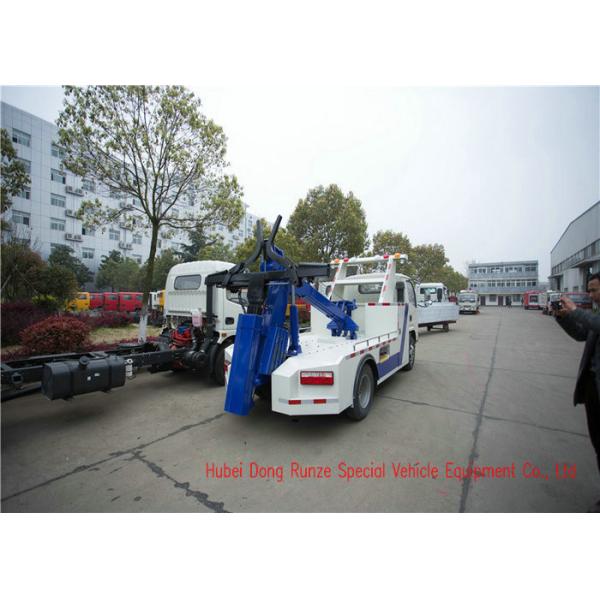

Recovery Truck Photo show:
