47m3 Aluminum Fuel Semi Trailer Tri Axle For Diesel ,Oil ,
Gasoline, Kerosene Transport 47T-50Ton
All Specification And Design Can Be Customized !
Factory direct supply tanker semi trailer is used to transport
fuel, the capacity is from 30CBM to 60 CBM, the compartments are
1~6 compartments. Including steel tanker, stainless steel tanker
trailer and aluminum tanker. The tank body is Q235/5mm steel, End
plate Q235A/6mm steel sheet.
Advantages:
1. The Fuel Tanker Trailers Transportation With High
Efficiency,Strict Testing Of Weld Sealing Solid Tyre, High Elastic,
Wear-Resisting.
2. The Axles Can Be Fuwa / Bpw With Different Tonnages By Your Need
With Price Differences. The Suspensions Can Be: Air Suspension,
Mechanic (Leaf Spring Suspension) Etc.
3. The Loading Deck Can Be Concave Beams, Tire Appeared Cover,
Totally Flatbed, Or Extendable. The Loading Ramps Can Be Rear End
Designed, Or Front Loading Ladders, Which Can Be Mechanic Spring
Ladders And Hydraulic Loading Ramps By Different Needs.
4. The Material Of The Tank Can Be Aluminum Alloy, Carbon Steel
Etc.

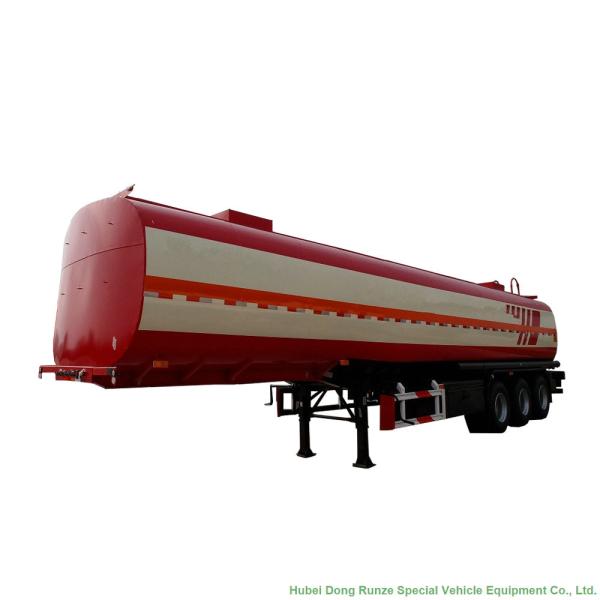

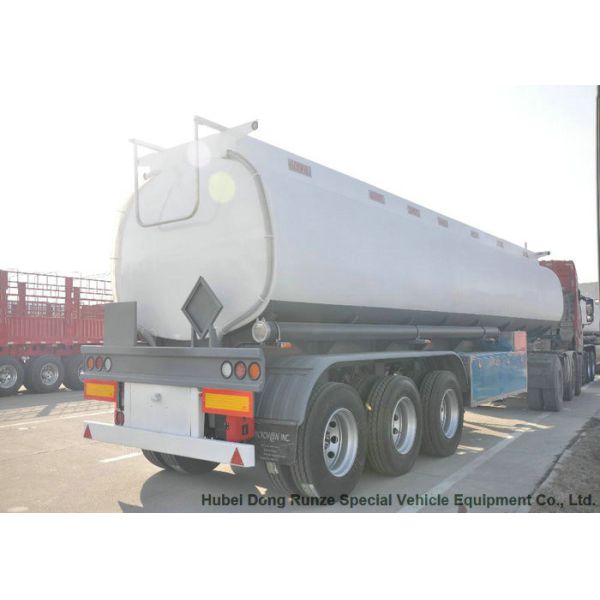

Trailer Photo show:
Stainless steel tanker trailers for carrying drink water, beer,
milk with food grade 304 stainless steel.
Optional: 36cbm Fuel Tank Trailer, 38cbm Oil Tank Trailer, 40m3
Diesel Tank Trailer, 45cbm Liquid Tanker Truck Trailer, 48cbm Crude
Tanker Semi Trailer, 50,000liters Fuel Tank Trailer, 55,000 Liters
Oil Tanker Truck Trailer, 60,000 Liters Tank Truck Trailer,Etc.
Producing Process
Trailer description
1
| 3 Axle Aluminum Fuel Semi Trailer 44m3 Aluminum Fuel Semi Trailer |
| Parameter | Dimension(Mm) | L*w*h:11300*2500*3990(Mm) |
| Axle Space(Mm) | 5500mm+1310mm+1310mm |
| Tare Weight(Kg) | 6680kg |
| Loading Capacity | 44000L |
| Oem | Landing Gear | Two Speed Manual Operation Type With Sand Shoe |
| Kingpin | 2" Bolted Type |
| Brake System | Dual Line Pneumatic Brake System. |
| Brake Chamber | Type 30/30 Spring Brake System On All Axles |
| Suspension | Common Suspension Or Air Suspension |
| Axle | Rjst/Bpw/Fuwa Axle, 13 Ton Capacity/Set,3pcs |
| Tire | 12R22.5 ,12pcs |
| Rim | 9.0*22.5 6 Pcs |
| Tool Box | 0.8 Meters Toolbox,One Pcs |
| Spare Tire Carrier | Two Pcs |
| Tank Specs | Compartment | One Or According To Your Requirment |
| Tank Material | Aluminum Alloy, Thickness 6mm |
| Bulkhead | Thickness Is 7mm |
| Baffle | Thickness Is 7mm |
| Shape Of Tank | Ellipse (Double “d”) |
| Others | Fire Extinguisher | 2 Pcs |
| Manhole | Two Manhole |
| Discharge Hose | 6m |
| Painting | Sand Blasting Before Painting;One Coats Of Primer, Anti
Corrosion,Two Coat Of Finish Painting;Colour Advised By Client |
2
| 30,000L-45,000L 3-axle Tank Semi-trailer |
| Feature: | Carry Fuel, Oil, Diesel, Drink water, Milk, Beer and other chemical
liquid |
| Dimension(L*W*H): | 11000*2500*3700mm(30,000L) 11700*2500*3750mm(40,000L) 12700*2500*3750mm(50,000L) 13000*2500*3750mm(60,000L) 13700*2500*3750mm(70,000L) |
| Model | DRZ9350GRY |
| Material: | Carbon Steel | Stainless Steel | Aluminum |
| Compartment: | 3-6 |
| Capacity(kgs): | 35,000L-45,000L |
| Tare weight(kgs): | 10,000-11,000kgs | 10,000-11,000kgs | 6,000-7,000kgs |
| Kingpin | The world-famous JOST brand bolt-in/welded type 3.5”/2” |
| Landing gear | JOST brand two-speed manual operation 19” |
| Tire size | 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5 |
| Rim size | 8.25*22.5,9.00*22.5,11.75*22.5 |
| Axle | Original BPW-12T/ FUWA-13T |
| Leafs spring | Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of
leafs spring/ Airbag suspension |
| Brake system | One unit WABCO RE 4 relay valve; four units T30/30 spring brake
chamber; two units T30 spring brake chamber; two units reliable
local brand 45L air tank; two units reliable local brand standard
coppery air-connector. |
| Manhole: | Aluminum alloy ø500mm(20”) manhole with aluminum alloy cover; with
breather valve; |
| Discharge Valve | Aluminum alloy discharge valve with cover |
| Foot Valve | Pneumatic control DN80 aluminum alloy foot valves |
| Pneumatic Control system | 1set Pneumatic Control combined switch 1unit emergency switch |
| Discharge Hose | 2 units 3”×6M factory PVC hose with quick coupling on both ends |
| Vapor Recovery & Overfill system | Optional |
| Fire Extinguisher Carrier | 2 units at the left of rear of tanker, include 2 units 8kg dry
powder type fire extinguisher inside |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn
light, reverse light, side light, reflector, fog light; one set of
6-pin standard cable |
| Prime & Topcoat painting | S.A.2.5standard sandblasting ;Zinc-rich & Polyurethane painting |
| We can build the trailers according to customer’s design and
requirement |
Loading and Packing
Warranty period and after sale service
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value
payoff before delivery after production finish.
2. 50% contract value as the deposit by T/T,50% contract value
payoff before delivery after production finish
