Stationary Hydraulic Scissor Lift

Parts Showing:

Configuration:

1) Platform Material:120mm*60mm rectangular tube +4mm checkered anti-slip plate
2) Support scissors: 160mm*80mm*6mm high strength Manganese Steel.
3) Hydraulic system: 380V/3.0Kw or 220v or as your request
4) Hydraulic cylinder: 90*4sets high precision wear-resisting cylinders with locking device for fall protection
5) Piston Rod: 45*2 hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.

7) Hydraulic pipe: high pressure pipe with double expanded metal protected

8) Hydraulic oil: summer 46#, winter 32#

9) Controller: 1 control box below, 1 hand controller above platform

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above the scissor lift .
3) Equipped 4 guide rails, to ensure the hydraulic scissor lift runs more smoothly and steadily.
4) The limit switch system helps the hydraulic scissor lift table to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric components are CE certified.
6) All the stationary hydraulic scissor lift are passed 1.2 times loading test before leaving factory.

Shandong Lift Machinery Co., Ltd is one of the leading manufacturer of heavy duty scissor lifts and car parking lifts in China. Being in this field form 1958, over 60 years, with 22 years of extensive lift machines exporting experience for our clients all over the world from 2001.

Our main products are stationary scissor lift, mobile scissor work platform, car park lift, cargo elevator, disable wheelchair lift, aerial aluminum lift ladder, and mobile container loading ramps etc.

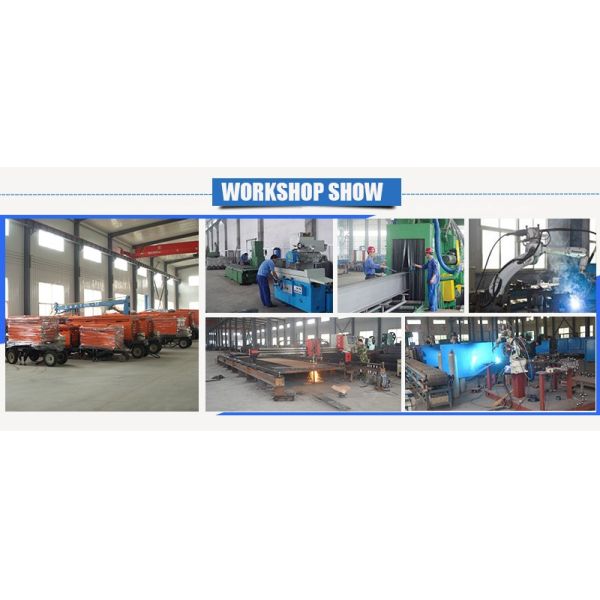

Now there are more than 116 staffs in our factory, and 10 production lines in 8 workshops. There is a engineer team focus on research, development and innovation.The biggest load weight of our scissor lift is 200tons. All our products are passed the test held by Check Station of China Special Equipment and Manufacture. By the way,our products with CE certificate, and we are "Audited Supplier" verrified by SGS from 2012, "Audited Supplier" verrified by TUV from 2016, "Audited Supplier" verrified by BV from 2018.

We regard "reasonable prices, efficient production time and good after-sales service" as

our tenet, and hope to cooperate with more customers for mutual development and benefits.

We sincerely welcome each potential customer to visit our factory!

Chosen of lift machines, you will trust "made in China"!
