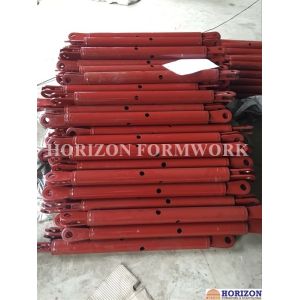

Adjustable Push-Pull Braces to Plumb Vertical Formwork Panels in Construction

Adjustable Push-Pull Braces to Plumb Vertical Formwork Panels in Construction

The push-pull brace was manufactured from qualified strong steel pipe materials and process on ensuring a long service life, low maintenance costs and fast handling.

Quick adjustment
Due to the telescopic design, working length adjustment can be carried out within seconds. An accurate adjusting length can be realised by only a few turns of the push-pull brace.

Easy assembly
For easy assembly to wall form panels and ground, the base plate adapter and the connector head help a lot. In this way, the push-pull braces can be safely and quickly installed and dismantled from the ground.

Various finishing are available, like painting, powder coating, zinc plate, and hot-dip galvanized. The available lengths of the push-pull braces are from 1.3m to 10m.

Wall Formwork Components:

Components	Diagram / photo	Specification / description
Wall formwork panel		For all vertical formworks
H20 Timber beam		Water proof treated Height: 200mm Width: 80mm Length: as per table size
Steel waling		Painted, powder coated [12 steel channel
Flange clamp		Galvanized To connect steel waling and H20 beams
Push-pull prop		Painted help formwork panel erection
Waling connector 80		Painted Used for formwork panels alignment
Corner connector 60x60		Painted Used for forming inner corner formwork with wedge pins
Top scaffold bracket		Painted, severs as safety working platform

       As a professional formwork company, HORIZON Formwork Co., Ltd. contributes its effort to the design, manufacturing and marketing of formwork systems, scaffolding systems and all kinds of accessories, which are widely used in commercial, residential and infrastructural projects. We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.
　　The main products we offer : wall formwork, slab table formwork, scaffolding system, timber beam H20, steel props, formwork wing nuts, tie rods, formwork clamps, and other formwork accessories, scaffolding fittings etc..

Over years of developement, we have completed many projects both in domestic market and abroad. Thanks to the reliable products quality and thoughtful service, HORIZON has won good reputation from the clients.

　　HORIZON Formwork, your reliable formwork partner!
