| Brand Name : | JIUHONG |
| Model Number : | JHCP |
| Certification : | UL,CE SGS,ISO9001 |
| Price : | Negotiable |
| Payment Terms : | Western Union, L/C, T/T |
| Supply Ability : | 3000000pcs/month |
| Delivery Time : | 2-7workdays |

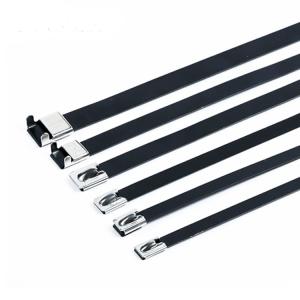

PVC Coated Stainless Steel Metal Ties For Binding Objects and Insulation
Description
Coated Stainless Steel Cable Ties are designed to secure several
electronic cables or wires together cables onto PV system. The
cable ties are available in corrosion resistant stainless steel
suitable for rigorous corrosive conditions, which provides a strong
durable method of cable bundling.
The Coated Stainless Steel Cable Ties have unique self-locking
mechanism allows easy and quick operation. Full or partial PVC
coated tie provides superior insulation and protection of cable.
Coated Stainless Steel Cable Ties are made of stainless steel grade 201,304 or 316,working temp:-80℃ to 150℃
Flammability: Fireproof
Other Properties: UV-resistant, non toxic

| Part No. | Approx. length. mm(inch) | Approx. width mm(inch) | Thickness mm | Max. Bundle Dia. mm(inch) | Min.loop tensile strength N(lbs) | Pcs/Bag |
| JHCP-4.6 x 150 | 150(5.9) | 4.6(0.181) | 0.4 | 37(1.46) | 600(135) | 100 |
| JHCP-4.6 x 200 | 200(7.87) | 50(1.97) | ||||
| JHCP-4.6 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCP-4.6 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCP-4.6 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCP-4.6 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCP-4.6 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCP-4.6 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCP-4.6 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCP-4.6 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCP-7.9 x 150 | 150(5.9) | 7.9(0.311) | 0.4 | 37(1.46) | 800(180) | 100 |
| JHCP-7.9 x 200 | 200(7.87) | 50(1.97) | ||||
| JHCP-7.9 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCP-7.9 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCP-7.9 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCP-7.9 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCP-7.9 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCP-7.9 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCP-7.9 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCP-7.9 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCP-7.9 x 650 | 650(25.59) | 167(6.57) | ||||
| JHCP-7.9 x 700 | 700(27.56) | 180(7.09) | ||||
| JHCP-7.9 x 750 | 750(29.53) | 191(7.52) | ||||
| JHCP-7.9 x 800 | 800(31.5) | 193(7.59) | ||||
| JHCP-12 x 150 | 150(5.9) | 12(0.472) | 0.4 | 37(1.46) | 1200(270) | 100 |
| JHCP-12 x 200 | 200(7.87) | 50(1.97) | ||||
| JHCP-12 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCP-12 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCP-12 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCP-12 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCP-12 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCP-12 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCP-12 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCP-12 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCP-12 x 650 | 650(25.59) | 167(6.57) | ||||
| JHCP-12 x 700 | 700(27.56) | 180(7.09) | ||||
| JHCP-15 x 200 | 200(7.87) | 15(0.59) | 0.55 | 50(1.97) | 1500(337) | 100 |
| JHCP-15 x 250 | 250(9.84) | 63(2.48) | ||||
| JHCP-15 x 300 | 300(11.8) | 76(2.99) | ||||
| JHCP-15 x 350 | 350(13.78) | 89(3.5) | ||||
| JHCP-15 x 400 | 400(15.75) | 102(4.02) | ||||
| JHCP-15 x 450 | 450(17.72) | 115(4.53) | ||||
| JHCP-15 x 500 | 500(19.69) | 128(5.04) | ||||
| JHCP-15 x 550 | 550(21.65) | 141(5.55) | ||||
| JHCP-15 x 600 | 600(23.62) | 154(6.06) | ||||
| JHCP-15 x 650 | 650(25.59) | 167(6.57) | ||||
| JHCP-15 x 700 | 700(27.56) | 180(7.09) | ||||
| JHCP-15 x 750 | 750(29.53) | 191(7.52) | ||||
| JHCP-15 x 800 | 800(31.5) | 193(7.59) | ||||
| JHCP-15 x 1000 | 1000(39.37) | 206(8.11) |
|
