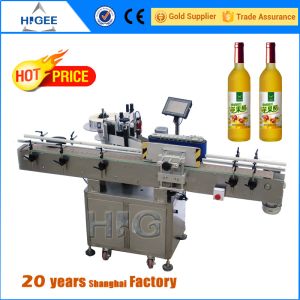

shanghai factory economy vertical labeling machine manufacturers
Application for :
This shanghai factory economy vertical labeling machine manufacturers is applicable for all kinds of round cylinder shape object in food,
chemical, pharmaceutical, cosmetic etc industry.
Features:
| Operation | PLC control system makes labeling equipment easy to operate |
| Material | Labeling equipment's main body is made of SUS304 stainless steel |
| Configuration | Our labeling equipments adopt well known Japanese, German, American, Korean or Taiwan brand parts |
| Flexibility | Client can chose to add printer and code equipment; can chose to
connect with converyer or not. |
Technical Parameters:
| Name | shanghai factory economy vertical labeling machine manufacturers |
| Labeling Speed | 60-300pcs/min |
| Height of Object | 25-95mm |
| Thickness of Object | 12-25mm |
| Height of Label | 20-90mm |
| Length of Label | 25-80mm |
| Label Roller Inside Diameter | 76mm |
| Label Roller Outside Diameter | 350mm |
| Accuracy of Labeling | ±0.5mm |
| Power Supply | 220V 50/60HZ 2KW |
| Gas Consumption of Printer | 5Kg/m2(if add coding equipment) |
| Size of Labeling equipment | 2500(L)×1250(W)×1750(H)mm |
| Weight of Labeling equipment | 150kg |
Other labeling equipments we produce are as follows (each model has
links to detailed information).
Pls click the picture if you are interested.
| | |
| Round Bottlt Labeling equipment | Semi-automatic Flat Surface Labeling equipment | Flat Surface Labeling equipment |
| | |
| HDY200 Point Labeling equipment for Cylinders | Two Sides Labeling equipment | Horizontal Labeling equipment |
- Port: Shanghai
- Packaging details: wooden case export packing
- Delivery detail: Normally 12-15 days after receipt of payment
Our Services
♦ Offer you professional labeling sulution according to your
specific labeling requirements.
♦ Supply you high quality labeling equipment after placing order.
♦ Try to make the delivery time as short to meet your needs.
♦ Provide you lifelong free technial support after you receiving our
equipment.
FAQ
1. What kind of labeling equipment do you have?
Dear Customer, we have automatic and semi-automatic labeling
equipment for round containers and flat surface.
Some model for one label and others for two labels or even more.
And we can design the equipment according to
your specific labeling situation.
Thus, pls fell free to send us your labeling requirements, we'll
provide you satisfying labeling solution.
2. Could we add coding equipment to print date and lot No.?
Yes, you can chose to add coding equipment to print the letters and
No. you want.
It's hot stamp and can print at most three lines.
3. What information should we supply to check the suitable model?
Pls send us picture of your container and label, as well as the
container and label size.
Pls also tell us what kind of label you use, if possible. (For
exampe, self-adhesive, could glue, hot glue, etc.
whether the label are in roll or pieces.)
Then, we'll let you check the suitable model.
