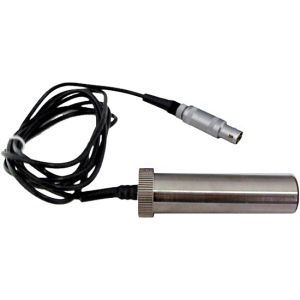

    Automated Ultrasonic Immersion Probe For Complex Geometrical Shape Components

    Ask Lasest Price
    Brand Name : Mitech
    Model Number : Ultrasonic Immersion Probe
    Certification : EN
    Payment Terms : D/P, T/T, Western Union, D/A, Paypal
    Supply Ability : 500 per week
    • Product Details
    • Company Profile

    Automated Ultrasonic Immersion Probe For Complex Geometrical Shape Components


    Ultrasonic Immersion Probe used for anomalous or complex geometrical shape components.


    Product Overview

    Mitech ultrasonic Immersion Probe, choice superior performance of the piezoelectric material. Matched to water acoustics to improve efficiency; point-focused (spherical) or line-focused (cylindrical) for improved resolution, sensitivity and signal to noise ratio; Suitable for inspection of parts with irregular or complex geometries, automation systems and high-resolution inspection. The key manufacturing processes using special equipment and fixtures, as far as possible to exclude the impact of human factors. We can provide high-quality customized solutions to meet the special needs of customers. All data traceability, can provide distance wave curve certificate according to customer needs. Consistent with "EN12668-2" and other relevant standards at domesitic and abroad, most interfaces are BNC (spherical Q9) connectors or live cables.


    Character

    (1) With anomalous or complex geometrical shape components.

    (2) Automated system.

    (3) For application situation requires high resolution detection.


    Function

    (1) Match hydroacoustics performance to raise efficiency.

    (2) Realize point focusing (spherical surface) or line focusing (cylinder), raise resolution, sensitivity and signal-to-noise ratio.

    (3) BNC(Q9) connector or with cable.


    Parameter Table

    TypeMaterial

    Frequency

    (MHz)

    Chip size(mm)Focal length (mm)Near field length (mm)
    I5P6F**

    Ordinary

    Materials(P)


    56Can be customized point focus length (no more than near field length)29
    I5P6CF**56Customized line focus length (no more than near field length)29
    I10P6F**106Can be customized point focus length (no more than near field length)58
    I10P6CF**106Customized line focus length (no more than near field length)58
    I15P6F**56Can be customized point focus length (no more than near field length)87
    I15P6CF**56Customized line focus length (no more than near field length)87
    I2.5P10F**2.510Can be customized point focus length (no more than near field length)40
    I2.5P10CF**2.510Customized line focus length (no more than near field length)40
    I5P10F**

    Ordinary

    Materials(P)


    510Can be customized point focus length (no more than near field length)81
    I5P10CF**510Customized line focus length (no more than near field length)81
    I2.5P14F**2.514Can be customized point focus length (no more than near field length)79
    I2.5P14CF**2.514Customized line focus length (no more than near field length)79
    I5P14F**514Can be customized point focus length (no more than near field length)158
    I5P14CF**514Customized line focus length (no more than near field length)158
    I2.5P20F**2.520Can be customized point focus length (no more than near field length)161
    I2.5P20CF**2.520Customized line focus length (no more than near field length)161
    I5P20F**520customized point focus length (no more than near field length)323
    I5P20CF**520Customized line focus length (no more than near field length)323
    2.5C10SJ**

    Composites(C)


    2.510Customized point of line focus length (no more than near field length)40
    2.5C14SJ**2.514Customized point of line focus length (no more than near field length)79
    5C6SJ**56Customized point of line focus length (no more than near field length)29
    5C10SJ**510Customized point of line focus length (no more than near field length)81
