    AMEISON Antenna Factory 806 - 2700 MHz 5 dBi Omnidirectiona GSM CDMA PCS DCS 3G UMTS WLAN WiFi 4G LTE modem antenna

    Ask Lasest Price
    Brand Name : AMEISON
    Model Number : AMXF-8027-5
    Certification : ISO 9001: 2008
    Price : EXW Price
    Payment Terms : TT,Paypal,Western Union
    Supply Ability : 50,000 Pieces per Month
    Delivery Time : 10-20 working days
    • Product Details
    • Company Profile

    AMEISON Antenna Factory 806 - 2700 MHz 5 dBi Omnidirectiona GSM CDMA PCS DCS 3G UMTS WLAN WiFi 4G LTE modem antenna

    AMEISON Antenna Factory 806 - 2700 MHz 5 dBi Omnidirectiona GSM CDMA PCS DCS 3G UMTS WLAN WiFi 4G LTE modem antenna


    Feature :
    Exquisite appearance
    Good impact resistance,waterproofing and anticorrosion ability
    Full day working
    Optimized dimension
    High gain,low standing wave,strong anti-interference ability


    Application :
    CDMA/GSM/PCS/2G/3G/4G/LTE/WIFI/WLAN system

    Point-to-multipoint system



    806-2700MHz Omnidirectional Antenna

    AMXF-8027-5

    Electrical Specifications

    Frequency range(MHz)806-960 / 1710-2700
    Bandwidth(MHz)154 / 790
    Gain(dBi)3 / 5
    Half-power beam width(°)H:360 V:55
    VSWR≤1.5
    Input Impedance(Ω)50
    PolarizationVertical
    Maximum input power(W)100
    Lightning protectionDC Ground
    Input connector typeN Female
    Mechanical Specifications
    Dimensions (mm)Φ60*230
    Antenna weight(kg)0.6
    Operating temperature(°c)-40~60
    Rated Wind Velocity(m/s)60
    Radome colorGray
    Mounting wayPole-holding
    Mounting hardware(mm)¢35-¢50

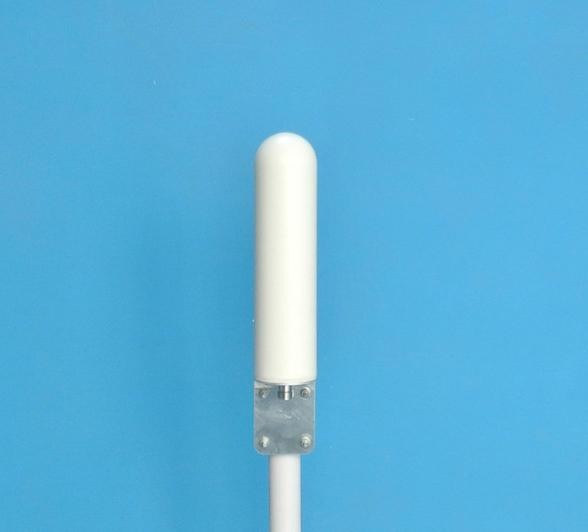

    Install as the picture below
