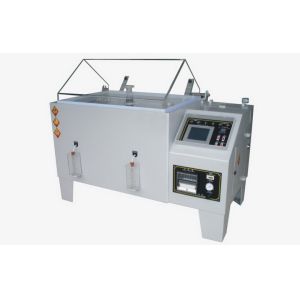

Salt Spray Test Chamber with Microcomputer Control for Resistance Corrosion Electroplating

Microcomputer Control Salt Spray Corrosion Salt Spray Test Chamber for NSS CASS Testing

Brief Introduction:

Seawater Acidified Test (cyclic) can be used to test the relative resistance to corrosion of coated or uncoated aluminium alloys and other metals, when exposed to a changing climate of acidified synthetic seawater spray, followed by a high humidity, both at an elevated temperature.

This test is also referred to as a SWAAT test. Test specimens are placed in an enclosed chamber, and exposed to a changing climate that comprises the following 2 part repeating cycle. 30 minutes exposure to a continuous indirect spray of synthetic seawater solution, prepared in accordance with the requirements of the test standard and acidified (to pH 2.8 to 3.0) by the addition of acetic acid.

This spray is set to fall-out on to the specimens at a rate of 1.0 to 2.0ml/80 cm²/hour. This is followed by 90 minutes exposure to a high humidity climate of above 98%RH. The entire test cycle is at a constant chamber temperature of +49C (may be reduced to +24 to +35C for organically coated specimens). The number of cycle repeats and therefore the test duration is variable.

Salt Spray Test Chambers offer the most realistic and dependable corrosion test, widely used to test corrosion resistance of automotive, paint, surface coating, chemical, aerospace, electronic, car industry, offshore and defense industries.

Features:

1, Chamber material is made of P.V.C Sheet, sturdily and will not be out of shape.

2, Test chamber is heated from five directions to ensure the temperature is uniformity distributed.

3, Spray nozzle is specially made, enable to spray the salt water with considerable speed, then falls on the surface of samples.

4, Hot and moist air keeps the humidity in the test chamber conforms testing request.

5, High precision P.I.D. temperature controller limits the temperature difference within the range of ±0.1℃.

Technical Specifications:

Please Note Small Type of 60 and 90 do not meet standard of ASTM B117.

Note:

1. The above specifications are for reference only, the actual specifications for the main quotation.

2. Custom made is available according to customers’ special requirements.

DongGuan Q1-Test Equipment Co., Ltd. was founded in year 2000, located in DongGuan, a famous industrial city.


Mainly specialized in manufacturing, developing and marketing various environmental testing equipment like programmable temperature and humidity test chamber QTH series, walk-in temperature and humidity test chamber, thermal shock test chamber QT3 series, industrial drying oven, burn-in chamber, salt spray/corrosion test chamber QCC series.


All the Q1-Test products conform the standards of GB, BS, IEC, CNS, ASTM, ISO, JIS, DIN and other relevant international testing standards.


Q1-Test product is widely used in the field of aerospace, military, automotive components, optoelectronic, electronic parts, communication, furniture, building materials, chemicals, paint, inspection laboratory, research institutes and other high-tech industries.


We have powerful ability to design, develop and manufacture custom made products according to customer’s special applications, and will go on enlarge our products line, provide professional solutions, timely services and qualified products to feedback customers’ kind support and trust.


We are also looking forward extensively and deeply work with customers to create brilliant future together.
