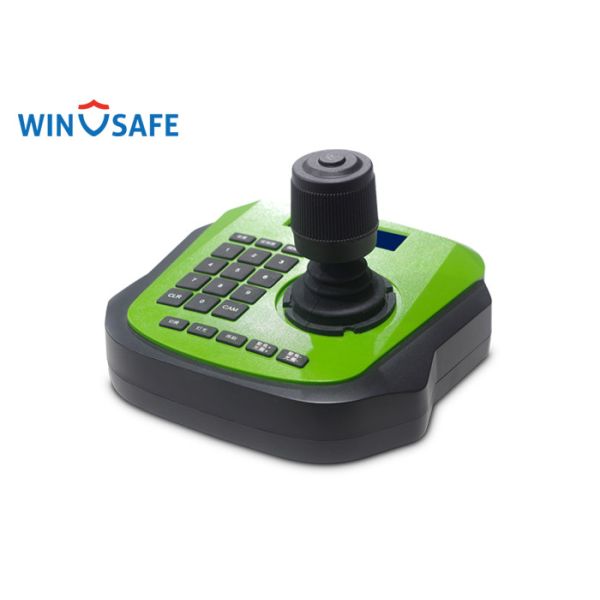

Mini IP Joystick Keybaord Vehicle PTZ Camera RS485 Controller
/CKB-15IP
Application
IP Keyboard Controller can be applied to installed in Multi-IP PTZ
camera places, such as school, hospital, hotel, factory, workshop,
etc., realize the unified control of the Onvif protocol in the LAN
Product Introduction
It can effectively prevent from scratching. Using industrial-grade
LCD, it can display excellent quality . Covered with a layer of
rigid organic glass makes the characters more clearly. It supports
Onvif protocol, high compatibility, extension IP keyboard
controller adopt aluminum wire, high-end atmosphere, unique surface
Feature
※ Support Network control model, It has unique IP address.
※ Support ONVIF protocol, realize the control to PTZ.
※ Support Auto-search the ONVIF devices in LAN
※ Support Offline search & add devices.
※ Support Max 253pcs front-end equipments in one LAN.
※ Support many famous brand IP PTZ Coding, such as Hikvision,
Dahua, TVT, Hanbang, XM, Jovision...etc
※ Support control IP PTZ to call and set Presets, zoom, focus,
Iris, Tour etc.
※ Japan-Original 4D Joystick
※ LED displayer can display IP PTZ’s status info
Technical Specification
| Model No. | CKB-15IP |
| Main Chip | Grain GM8126 |
| RS485 | 1pc 3.81pin, TA,TB |
| RS232 | 1pc DB9 male pin |
| Ethernet | 1pc Ethernet, IEEE 802.11 b/g/n |
| Protocols | Onvif 2.4 |
| Power Supply | DC12V ± 10% |
| Working Temperature | 0°C - 55°C / 15°F - 131°F |
| Working Humidity | 20% - 80%(frostless) |
| Storage Temperature | -20°C - 70°C / 14°F - 140°F |
| Storage Humidity | Below 90%RH(frostless) |
| Dimension | 158 x 150 x 107(mm) |
| Weight | 1.21kg |
| Certification | CE, RoHs |
| Warranty Time | One Year |
Small and multifunctional, control as you like
CKB-15IP keyboard controller is a back-end control equipment in
integrated monitoring system. It's specical designed to slove the
DVR and other equipment can not be easily to fast control the
front-end like dome camera and PTZ. This control personnel can more
eaily control the front-end euqipment.
Best communication compatibility, compatible with a variety of
camera protocol
Good communication compatibility, compatible ONVIF protocol of PTZ
and platform from many manufacturers
4D vector transmission joystick
4D joystick, completely subvert the tradidional joystick operation
based on potetiometer, adopt exclusive innovative photoelectric
signals, low abrasion, greatly optimized the touch and life of
joystic.
PTZ Variable Control
