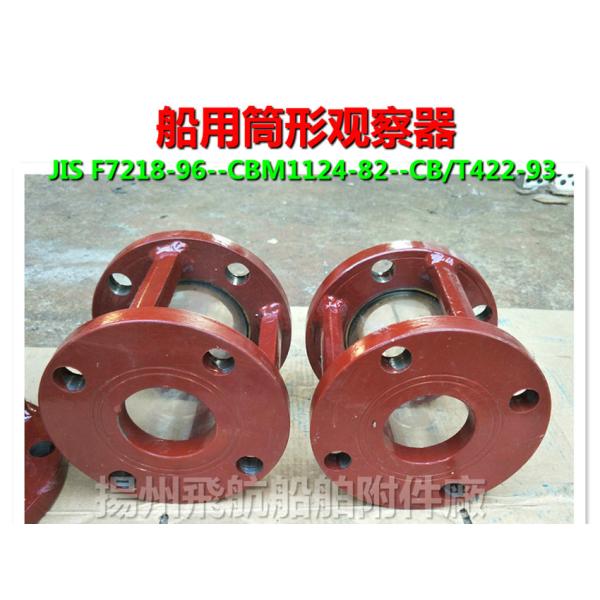

Marine cylindrical liquid flow observer DN200 CBM1124-82

Marine Cylindrical Sight Glass CBM1124-82

Marine cylinder are usually labeled as observer:

Cylindrical liquid flow observer DN150 CBM1124-82

Flange diameter =265mm D flange center distance =225mm D1 8 hole *M19

Cylindrical liquid flow observer DN200 CBM1124-82

Flange diameter =320mm D flange center distance =280mm D1 8 hole *M23

CBM1124-82 cylindrical overflow viewer Standard JIS F7218-75, upper body and the lower part of the lower flange is d (ribs) reinforcement is connected as a whole. Transparent tube inserted from the bottom, the lower flange with internal thread converted into the lid; upper flange for fluid not splashed down in the inside of the barrel shaped glass around was compressed into cone, the angle and the center corresponding to maximum flow for 13 degrees.

Tube shaped transparent tube material for thermoplastic resin.

CBM1124 marine cylinder observer structure size are as follows:

Marine cylindrical liquid flow observer of main parts are as follows:

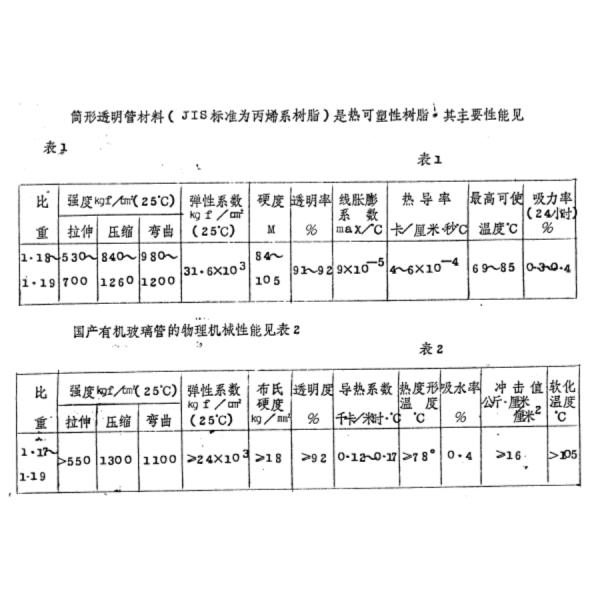

Marine fluid - Cylindrical observer transparent tube material: adopt heat plastic resin, the main performance for:

Of course, can according to customer requirements this section of cylindrical liquid flow observer, stainless steel production, such as the contrast:
