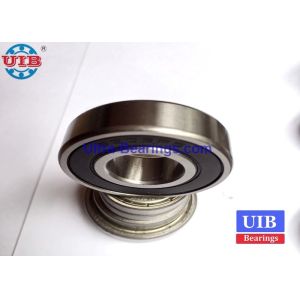

    6203 2RS Chrome Steel Precision Ball Bearing AISI 52100 Material Low Noise

    Ask Lasest Price
    Brand Name : UIB
    Model Number : 6203 2RS
    Certification : ISO9001:2008
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30000per month
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    6203 2RS Chrome Steel Precision Ball Bearing AISI 52100 Material Low Noise

    6203 2RS Chrome Steel Precision Ball Bearing AISI 52100 Material Low Noise


    I. Product brief introduction:

    We using standard chrome steel GCR15, AISI52100 to prepare our rings, G10,G16 grade bearing balls.

    Both inner and outer ring groove has to be polished to guarantee bearing movement more fluent and low noise.

    Our bearing work life more longer then ordinary bearings, because our polish working time is longer then market normal level.


    II. Product advantage:

    a, price advantage: we have mature work process lines.

    b, quality advantage: strict raw material select, standard working process.

    c, delivery on time advantage: we have large stock rings for assemble, and our assemble lines conver 6200~ 6300 series.


    III. Conveyor roller bearing Instrallation:


    Precision conveyor roller bearing requirements bearing in rotary system of dynamic balance,

    shaft and hole bearing installation of the parts should be higher than the general requirements of dimensional accuracy, form and position accuracy, especially the alignment of hole or shaft neck and shoulder vertical degree, and to think about these problems, also must pay attention to the high speed and high temperature factors in the operation of the bearing.


    Shaft bearing system requires both high rigidity, asked for a light quality as much as possible, in order to overcome the contradiction, can take measures such as reducing the surface roughness and improve the surface strengthening in order to improve the bearing stiffness, using hollow shaft to reduce the system quality, etc.


    6203 conveyor roller bearing specification
    bearing typeISO bearing NO.OLD bearing NO.IDODWIDTHCrCorgrease lubricatedx
    speed
    oil lubricated
    speed
    weight
    (mm)(mm)(mm)(kN)(kN)(r/min)(r/min)(kg)
    conveyor roller bearing62032031740129.584.7816000200000.065
    conveyor roller bearing6203-Z602031740129.584.7816000200000.06
    conveyor roller bearing6203-2Z802031740129.584.7816000200000.06
    conveyor roller bearing6203N502031740129.584.7816000200000.06
    conveyor roller bearing6203-ZN1502031740129.584.7816000200000.06

    Highlight of our forged bearing rings, polished bearing groove, that is unviewable potential cost to strengthen our ball bearing quality!


    conveyor roller bearing ringsconveyor roller bearing rings

    Quality 6203 2RS Chrome Steel Precision Ball Bearing AISI 52100 Material Low Noise for sale
