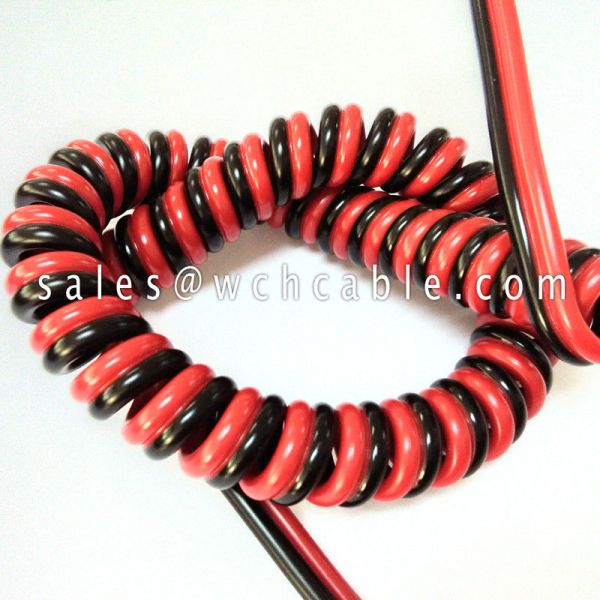

    UL21253 Highly Resilence Hytrel TPEE Spiral Cord Cable 75C 30V

    Ask Lasest Price
    Brand Name : WCH Cable
    Model Number : UL21253
    Certification : UL, Cul, AWM
    Price : USD0.355 per piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100,000pcs per week
    Delivery Time : 9 days for ready goods
    • Product Details
    • Company Profile

    UL21253 Highly Resilence Hytrel TPEE Spiral Cord Cable 75C 30V

    Feature of UL21253 Highly Resilence Hytrel TPEE Spiral Cord Cable 75C 30V

    Conductor: High purity copper wire, tinned or bare, stranded or solid.
    Insulation: Quality materials complying with AWM standard.
    Screen Shield: Foil, spiral shield, copper braiding, optional.
    Jacket: Thermoplastic Polyurethane TPU
    Standard: Appliance Wiring Material UL758.
    Rated Temperature: 75 deg C.
    Rated Voltage: 30V.
    Flammability: UL VW-1 passed.
    Uniform insulation thickness for smooth stripping.
    Other approvals: Cul, CSA / Canadian Standards Association.
    Application: Internal wiring & external wiring of electronic appliances.
    Outstanding Feature: high temperature resistant of Hytrel TPEE insulated wires.

    Parameters of UL21253 Highly Resilence Hytrel TPEE Spiral Cord Cable 75C 30V


    Style NumberCore QuantityCopper ConductorInsulation ThicknessInsulation DiameterJacket ThicknessOverall DiameterConductor Resistance
    AWGNo/mmmmmmmmmmΩ/KM
    UL212532C307/0.1000.230.800.763.60381.00
    2C287/0.1270.230.900.763.90239.00
    2C267/0.160.231.000.764.00150.00
    2C2411/0.160.231.100.764.2094.20
    2C2217/0.160.231.300.764.6059.40
    2C2021/0.1780.231.500.765.0036.70
    2C1834/0.1780.231.800.765.6023.20
    2C1626/0.250.232.000.767.8014.60
    3C307/0.1000.230.800.765.50381.00
    3C287/0.1270.230.900.765.70239.00
    3C267/0.160.231.000.765.90150.00
    3C2411/0.160.231.100.766.1094.20
    3C2217/0.160.231.300.766.5059.40
    3C2021/0.1780.231.500.767.0036.70
    3C1834/0.1780.231.800.767.6023.20
    4C307/0.1000.230.800.765.70381.00
    4C287/0.1270.230.900.765.90239.00
    4C267/0.160.231.000.766.20150.00
    4C2411/0.160.231.100.766.5094.20
    4C2217/0.160.231.300.766.9059.40
    4C2021/0.1780.231.500.767.4036.70
    5C307/0.1000.230.800.766.00381.00
    5C287/0.1270.230.900.766.30239.00
    5C267/0.160.231.000.766.40150.00
    5C2411/0.160.231.100.766.8094.20
    5C2217/0.160.231.300.767.4059.40
    6C307/0.1000.230.800.766.40381.00
    6C287/0.1270.230.900.766.70239.00
    6C267/0.160.231.000.767.00150.00
    6C2411/0.160.231.100.767.3094.20















    tag: UL21253
