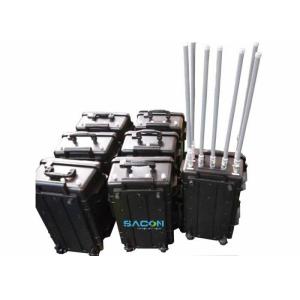

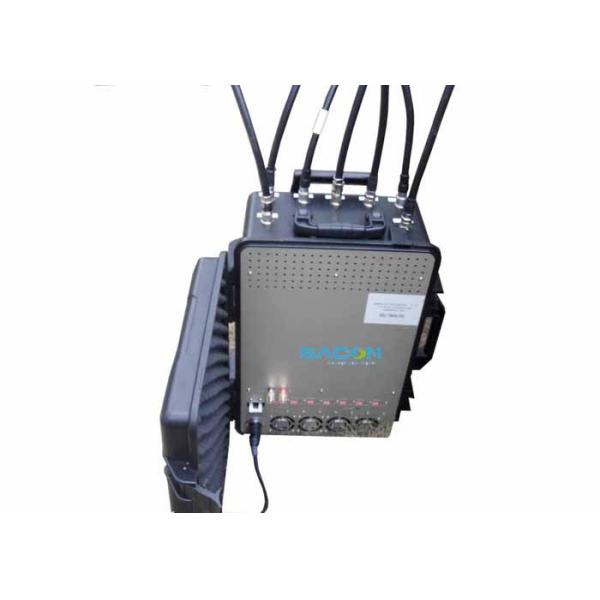

7 Channels 350w Manpack Jammer Fiber Glass Antennas For 3G 4G GPS ,
AC110-220V
Description:
This is a portable type mobile phone signal shielding device .It is
easy to carry, flexible to use, also with optional built-in high
capacity battery , so it especially suitable for application in:
large venue, infantry troop and military security force, the SWAT
team, counter-terrorism unit, the drug control unit,
explosion-proof, EOD team, checkpoint, the hostage negotiation, and
border control, etc.
Functional characteristics:
1. High RF power, shielding all 2G, 3G, 4G,Wifi signals,
frequencies can be customized.
2. it can with multiple power supplies :if with built-in battery,
it can provide power for the jammer working about 2 hours. Also it
can be powered by 220V AC or an on-board power supply.
3. Efficient cooling heat dissipation system ,including high
performance aluminum alloy heat sink and several wind fans, so the
jammer can non-stopped work for long time.
4. this jammer can be customized as 4, 5 , 6 & 7 bands ,and each
band could be 50 watts or 100watts as customer’s request.
Specifications:
| Output interface | Shield band of frequency | RF output power | Output power/channel
|
| CH1 CDMA 800 | 851-894 MHz | 47 dBm | 17 dBm/30KHz(min)
|
| CH2 DCS 1800 | 1805-1880 MHz | 47 dBm | 14 dBm/30KHz(min)
|
| CH3 3G 2100 | 2110-2170 MHz | 47 dBm | 15.5 dBm/30KHz(min)
|
| CH4 4G 2300 or 2600 | 2300-2400MHz or 2620-2690MHZ | 47 dBm | 15.5 dBm/30KHz(min)
|
| CH5 GSM 900 | 925-960 MHz | 47 dBm | 17.5 dBm/30KHz(min)
|
| CH6 LTE 700 or 800 | 725-770MHz or 790-826MHz | 47 dBm | 17.5 dBm/30KHz(min)
|
| CH7 Wifi 2.4G | 2400-2500 MHz | 47 dBm | 17.5 dBm/30KHz(min)
|
Power supply: AC110-220V
Shielding area: 30-500M @ according to signal density of mobile
network
|
Power consumption: 720W Weight:22Kg Size(length × wind ×
high):390×390×240mm
|
Humidity: 30%-95% Running Temperature: -20 to +55 Celsius Degree
|
Competitive Advantage:
1. Easy of mobility, can be carried like a trolley.
2. High Power RF amplifiers with VSWR and temperature
self-protection technology.
3. with good cooling system, can operate for long time.
4. Using digital interference technology, overall effective
suppression of target spectrum
5. Independent module design. Each module can separate
switch,disassemble. So it is convenient for maintenance and update.
6. Perfect Alarm System, fully protected circuit in case of
disconnection of antennas.
Applications:
large venue, infantry troop and military security force, the SWAT
team,
counter-terrorism unit, the drug control unit, explosion-proof, EOD
team, checkpoint, the hostage negotiation, and border control, etc.
