DC12v 4w 3G 4G Signal Jammer With 8pcs Omni Antennas Up To 20m Work
1.5 Hours
The latest 8 antennas portable WiFi Jammer,Have good Jamming for all mobile phone 2G,3G,4G signal and
WI-FI2.4G/GPSL1 bands.Total output power of this handheld signal
jammer is 4W Jamming range up to 20m.
Features:
Use External Omni-directional antennas,all the TX frequency covered
down link only.
The latest design and Good cooling system with cooling fan inside.
Could be chargered in car with DC12V.
Can turn on or off any single band without influencing the other
bands operation.
Built-in Battery:4600mA/h,Charge full time within 4Hours,Working
time: 90 minutes.
ODM and OEM orders are welcome,,You can select any 8 bands for your
require,GPSL2-L5,433MHz 315Mhz.etc,The price maybe different.
Specifications:
Lojack
| 167--175MHz |
| GSM&CDMA |
851--960MHz |
| DCS&PCS |
1805--1990MHz |
| WiFi/Bluetooth, 4G LTE |
2400--2483MHz |
| 4G Wimax (Sprint) |
2300--2400MHz Or 2500--2690MHz |
| 4G LTE iPhone (AT&T & Verizon) |
700-800MHz Or 790--862MHz |
| GPS |
1570--1580MHz |
| 3G |
2110---2170MHz |
| Jamming Range |
Radius 2 to 20 Meters. The signal strength <= -75dBm in the
location |
| Battery |
Ni-Mh battery 4600MAh |
| Work time |
90 minutes per full charge |
| Output power |
4 Watt |
| Automatic power switching power supply |
AC100-240V TO DC12V IN |
| Cooling system |
1 cooling fan inside |
| Box Size |
220*200*65mm |
| Weight |
0.85 kgs |
Accessories:
Main unit x 1pcs
Power adapter x 1pcs
Car charger x 1pcs
Omni antenna x 8pcs
Applications:
Meeting room, conference room, museum, gallery, theatre, concert
hall, church, temple, restaurant, classroom, training center,
factory, bank, train, bus, etc. For some locations of special
purpose such hospital, gas station, Army authorities, Police
authorities. Etc
Notice:
1. Do not power on if antenna s are not connected.
2. The functional coverage is greatly affected if antennas are not
installed
correctly. Do ensure the antennas are properly connected before
usage.
3. When power on, keep away from computer, notebook PC, television,
audio
and AM/FM radio to prevent interferences.
4. The normal operational temperature is about 6 5 ° C. If the
temperature is
higher than the above, turn off the power immediately and contact
local
agent for help.
5. Its functional coverage will depends on the location and
strength of the
ambient mobile phone base stations.
6. Placing the device on higher position for better coverage. 2
meters height
is recommended.
7. The Ni-MH rechargeable battery has estimated 500 times recharge
cycles.
Please contact the local agent to replace battery if it is not
rechargeable.
Install steps:
1. Please charge battery at least 5 hours before first-time use.
2. Turn off power switch before charging. Charging indicator shall
lights on RED when charging the battery , the indicator will turn
to GREEN color while finished.
3. Please install antennas and tight up according to the number indicator.
Kindly refer to the picture below .
4. Turn on the power switch and the Power LED shall light in Green and the LED
of each band will turn on, too .
5. Don’t suggest using while charging. ( The operational temperature may too high about 7 5 ° C normally.)
Function Introduction:
Each band could be chosen operating or not.

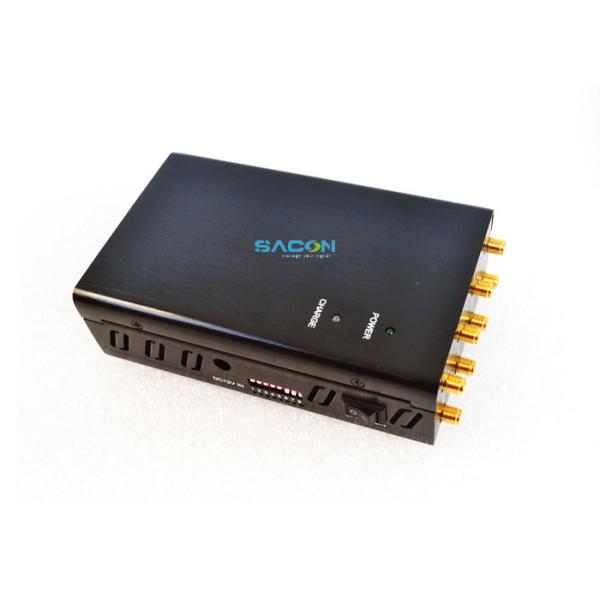

1. Find the dip switch on the side of the device as below left
picture.
The number indicators are corresponding to the number of antennas.
2. Eight arrows toward from OFF to ON (default), by dip switching
ON →OFF, each band could be disable.
3. The corresponding LED indicator shall be turn off.
