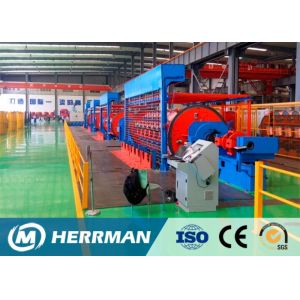

Ground Shaft Drive Rigid Strander Copper Wire Manufacturing Machine 60m / Min

Rigid Type Cable Stranding machine For Copper Wire and Aluminum Wire

Application

The machine is mainly used for stranding copper, aluminum and aluminum alloy wires, make compacting or non-compacting round conductor. Non compacted or compacted circular. Circular conductors are compacted with dies. Compacted Sector (pre-spiralled sectors as option)

- material: copper, aluminium, aluminium alloy (with preforming heads)

- shape: round, trapezoidal (for ACSR-tw and T-ACSR-Tw)

- size: copper: 1.5 to 4.5 mm

- aluminium (EC grade) : 1.8 to 4.5 mm

- aluminium alloy (max 350 N/mm2) : 1.7 to 4.3 mm (as far as it does not require more than 35 daN tension)

Composition of the conductors:

1 + 6 = 7 wires made on a separate line

1 + 6 + 12 = 19 wires (one pass)

1 + 6 + 12 + 18 = 37 wires (one pass)

1 + 6 + 12 + 18 + 24 = 61 wires (one pass)

Main Technical Data

Machine Drawing:

Anhui Herrman Machinery Co Ltd was found in 2010. It is 100% Private Owned by Anhui Herrman Group which was established in 1994. Our Target Goal is to serve customer with EPC business on Cable Production Projects. We have perfect Team on Engineering Design, OEM Production and High Quality Contractor. We have very good experience on supplying all kinds of cable making machineries which are related

to Power cable, control cable, insulated wires & Optical Fiber cable with Turn Key projects as well.

We have good reputations in 36 countries such as USA, Turkey, Czech Republic, Korea & India, Egypt, etc. . We supply not only High Quality machinery, but also good maintenance service to supply spare parts and engineering service. To achieve good satisfaction, you are mostly welcome to visit our factory and interview good machines which are running in China & other countries.
