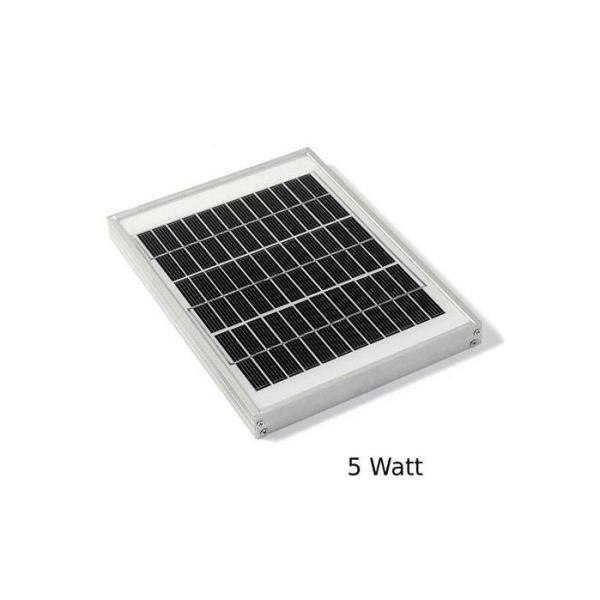

Aluninium frame with plastic steady 5W polycrystalline PV Solar
Panel charging for solar tracking device
Features
1) Module efficiency : 16%
2) Warranty : 12 years/90%,25 years/80%, guaranteed 10years
material and workmanship
3) Tolerance : Guatanteed tolerance,different model with diffetent
tolerance,and delivers higher outputs reliably
4) Excellent performance under low light conditions
5) Module certified to wind and snow loads
6) Anti-reflective,hydrophobic layer with light absorption and
minimal surface dust
7) Rich selection of solar power
Electrical Characteristics
| ITEM NO | 5W/18V |
| MONO or POLY | poly |
| Maximum power (Wp) | 5wp |
| Maximum power voltage (V) | 18 |
| Maximum power current (A) | 0.27 |
| Open circuit voltage (V) | 21.6 |
| Short circuit current (A) | 0.29 |
| Number of cells (Pcs) | 36 |
| Size of module (mm) | 269x179x18 |
| Brand Name of Solar Cells | HT |
| Maximum system voltage (V) | 715 |
| Temperature coefficients of Isc (%) | 0.065+/-0.015%/°C |
| Temperature coefficients of Voc (%) | -(2.23+/-0.1)mv/ °C |
| Temperature coefficients of Pm (%) | -(0.5+-0.05)/ °C |
| Temperature coefficients of Im (%) | +0.1/ °C |
| Temperature coefficients of Vm (%) | -0.38/ °C |
| Temperature Range | -40°C~+85°C |
| Tolerance Wattage (e.g. +/-5%) | +/-5% |
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
| Allowable Hail Load | steel ball fall down from 1m height |
| Weight per piece (kg) | 0.6 |
| Length of Cables (mm) | 3m |
| Cell Efficiency (%) | more than13% |
| Module Efficiency (%) | more than 8% |
| Output tolerance (%) | +/-5% |
| Frame (Material, Corners, etc.) | Aluminum |
| Standard Test Conditions | AM1.5 100mw/cm2 25°C |
| Warranty | 2 years product warranty and 25years 80% of power |
| FF (%) | 75% |
| Packing | 10PCS/ CTN |
| Unit Price | |
Application:
1.water pumping
2. water purification systems
3. remote village lighting
4. solar home system
5. street and camp lights
6. traffic signals
7. medical facilities in remote areas
8. microwave/radio repeater stations
9. battery charging
How Do Solar Panels Generate Electricity?
PV solar panels generate direct current (DC) electricity. With DC
electricity, electrons flow in one direction
around a circuit. This example shows a battery powering a light
bulb. The electrons move from the negative
side of the battery, through the lamp, and return to the positive
side of the battery.
With AC (alternating current) electricity, electrons are pushed and
pulled, periodically reversing direction,
much like the cylinder of a car’s engine. Generators create AC
electricity when a coil of wire is spun next to
a magnet. Many different energy sources can “turn the handle” of
this generator, such as gas or diesel fuel,
hydroelectricity, nuclear, coal, wind, or solar.
AC electricity was chosen for the U.S. electrical power grid,
primarily because it is less expensive to
transmit over long distances. However, solar panels create DC
electricity. How do we get DC electricity into
the AC grid? We use an inverter.
