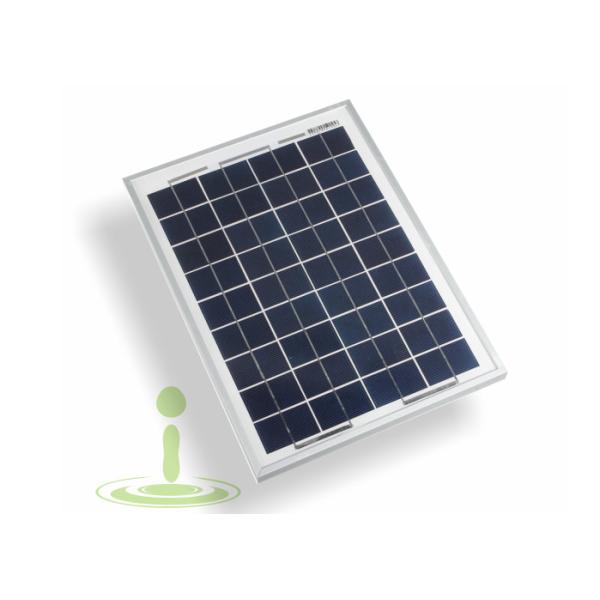

Aluninium frame with plastic steady 10W poly Solar Panel Solar Cell
charging for solar tracking device
Features:
1. Solar panel nominal 12/24v DC for standard output.
2. Solar panel encapsulated with high transmission low-iron, 3.2mm
tempered glass.
3. Aesthetic appearance and rugged design.
4. Cells are laminated with TPT and EVA ensuring longer life and
maximum performance.
5. PV module easy to install.
6. TPT imported from Krempel, Germany.
7. High Solar cell-conversion efficiency of solar cell: up to 21%
and stability with guaranteed 3%power
output tolerance.
Electrical Characteristics
| ITEM NO | 10W/18V |
| MONO or POLY | poly |
| Maximum power (Wp) | 5wp |
| Maximum power voltage (V) | 18 |
| Maximum power current (A) | 0.57 |
| Open circuit voltage (V) | 21.6 |
| Short circuit current (A) | 0.61 |
| Number of cells (Pcs) | 36 |
| Size of module (mm) | 340*240*17 |
| Brand Name of Solar Cells | HT |
| Maximum system voltage (V) | 715 |
| Temperature coefficients of Isc (%) | 0.065+/-0.015%/°C |
| Temperature coefficients of Voc (%) | -(2.23+/-0.1)mv/ °C |
| Temperature coefficients of Pm (%) | -(0.5+-0.05)/ °C |
| Temperature coefficients of Im (%) | +0.1/ °C |
| Temperature coefficients of Vm (%) | -0.38/ °C |
| Temperature Range | -40°C~+85°C |
| Tolerance Wattage (e.g. +/-5%) | +/-5% |
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) |
| Allowable Hail Load | steel ball fall down from 1m height |
| Weight per piece (kg) | 1.2 |
| Length of Cables (mm) | 3m |
| Cell Efficiency (%) | more than13% |
| Module Efficiency (%) | more than 8% |
| Output tolerance (%) | +/-5% |
| Frame (Material, Corners, etc.) | Aluminum |
| Standard Test Conditions | AM1.5 100mw/cm2 25°C |
| Warranty | 2 years product warranty and 25years 80% of power |
| FF (%) | 75% |
| Packing | 10PCS/ CTN |
| Unit Price | |
Polycrystalline Solar Module
Using only the best quality materials to provide high quality solar
modules
1.High efficiency solar cells with high transmission and low iron
textured glass
delivering high efficiency modules
2.Bypass diode minimizes the power drop caused by shading
3.Tempered glass,EVA resin,and weatherproof film,plus aluminum
frame for
extended outdoor use
4.Modules independently tested to ensure conformance with
certification and
regulatory standards
5.Manufacturering facility certified to ISO 9001 quality management
system
sandards
WHY CHOOSE US?
1. Excellent efficiency, Easy Installation & Maintenance
2. Outstanding performance in Low-Light
3. High transparent, Low-Iron, Tempered Glass
4. Ability to withstand High Wind-Pressure and Snow-Load
5. Advanced module sealing technology to eliminate leakage and
frame deformation
6. Ability to meet customized customer's specific requirements
