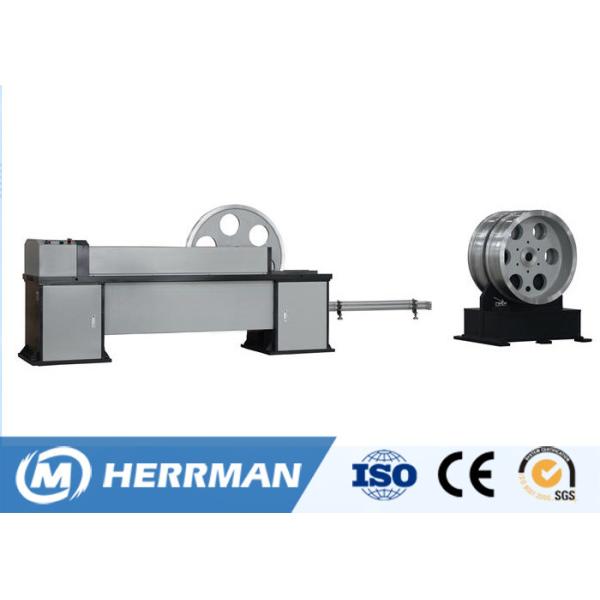

Computer controlled optical cable tension testing machine tension
tester
Description
The equipment is used to test optical cable tensile properties
within the prescribed tensile load (that is usually tensile
properties during installation), that means optical fiber
attenuation, optical fiber
strain, and function relation of optical cable strain and tensile
load
The equipment adopts computer control, servo motor drive, precision
ball screw drive loading, and precision load sensor signal
measurement With the function of stable loading, accurate
measurement, fast control response, various control modes, can
conveniently and accurately realize the digital calibration of load
and elongation, it also has the characteristics of full load
protection and position protection etc.
Main Specification
| Model | GLW-50 | GLW-100 |
| Force capacity | 50kN | 100kN |
| Force Range | (1%-100%)F.S. |
| Force Resolution | +250000 Steps, the same resolution without step division |
| Force Accuracy | ±0.5% |
| Force keeping time | more than 3 hours, set freely |
| Force keeping relative error | ±0.5% |
| Deformation measurement range | 1000mm |
| Deformation test Range | (0~50)mm |
| Deformation Resolution | 0.001mm |
| Deformation value Accuracy | ±0.5% |
| Displacement Resolution | 0.001mm |
| Displacement Control Resolution | 0.000015mm |
| Displacement value Accuracy | ±0.5% |
| Displacement Speed Range | (0.01 -500)mm/min, set freely |
| Displacement Speed relative error | ±0.5% |
| Tensile space | 25m |
| Effective Tensile Travel | 1000mm |
| Clamping cable diameter | 30mm |
| Host power supply | AC220V±10%,50~60Hz,2kW |
| Computer Power supply | AC220V±10%,50~60Hz,0.5kW |
| Weight | 3500kg |
Product configuration
- Servo drive and servo motor: Japan YASKAWA
- Load sensor: America Vishay
- Deformation measurement device: Shanghai Liangxing
- Reducer: Star reducer
- Wheel set: HERRMN
- AEC-1200 controller: HERRMN
- Computer
Installation Requirement
Host power supply: single phase, AC220V±10%, 50～60Hz, 2kW.
Computer power supply: single phase, AC220V±10%, 50～60Hz, 0.5kW.
Install onto a stable base, levelness≤0.2/1000, and room of more
than 1 m around.
Ambient temperature: 25℃±10℃, humidity: ≤80% non-condensing.
No vibrating or corrosive media indoor.
Lay-out Drawing
