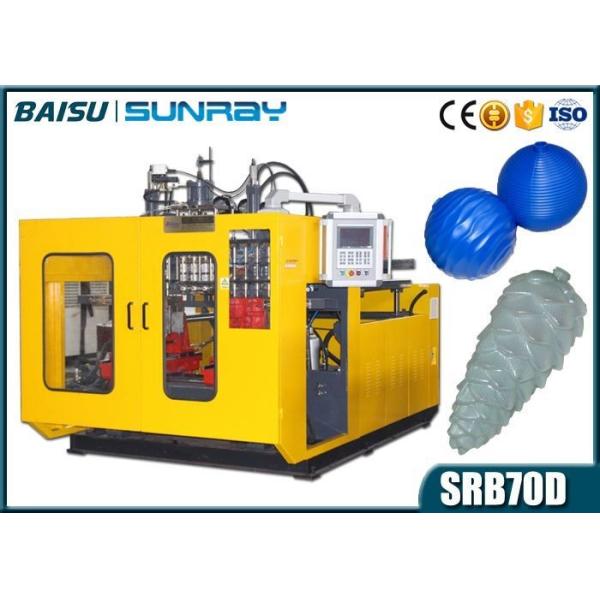

HIPS Decration Christmas Ball Automatic Blow Molding Machine
1200BPH Capacity, PS Small Balls Automatic Bottle Blowing Machine,
Christmas Ball Making Machine
QUICK VIEWS
1. SRB70D-4 is specially used for small plastic bottles,
containers, christmas balls, toy balls and sphere.
2. Its extrusion system and heads are designed and made for LDPE,
HDPE, HIPS, PP & PVC material gernally.
3. The output for Dia.60mm christmas ball is 1200-1250 Pcs/hour, the daily
production capacty is 30000 balls.
|
TECHNICAL PARAMETERS
| Machine Model | Double Station Extruder Blowing Machine |
| Max Product Volume | 500 ml |
| Machine Weight | 5.5 Tons |
| Machine Size | 3.8 x 2.2 x 2.5 m |
| Screw Diameter | 70 mm |
| Plasticizing Capacity | 90 KG |
| Clamping Force | 68 KN |
| Platen Size | 320 x 390 mm |
| Platen Opening Stroke | 150~500 mm |
| Max Mould Size | 360 x 360 mm |
| Four Head Central Distance | 95 mm |
| Max Product Diameter or Width | 75 mm |
| Material Cutting Method | Hot Cutting |
| Max Die Diameter | 45 mm |
| Total Power | 48.5 KW |
| Average Energy Consumption | 32.5 KW |

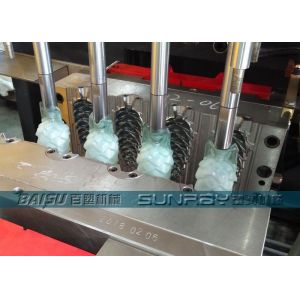

Click Picture Above to See SRB70D-4 Commissioning for Chirstmas
Balls
MACHINE ADVANTAGES
1. Our continuous extrusion blow molding machines cover 0~30L
bottles, jerry cans, jars, containers, kettles, small toys, pipes
and other hollow articles. Based on your capacity requirement, we
can adopt single head, double head, triple head, four head and six
head with good material runner design.
2. According to your demand of packing objects and cost control,
our machine can be made with co-extrusion of 2~4 layers and view
stripe line. The design concept of us to 0~30L machine is stable
working performance, fast production speed, higher automatic degree
and lower fault rate.
3. Total machine control system well match with scraps on-line
deflashing, neck rotary cutting, in-mould labeling, leakage
testing, product conveying & packing. Optimized hydraulic system
with reasonable design to control pressure and flow of double
proportion, acchieve action execution fast, stable and accurate. High hardness bimetallic screw with good structure design and
modulation, insure bigger plasticizing capacity, less wearing and
longer working lifespan.
4. Rich experience in whole producing line arrangement and layout,
totally automatic running from material feeding to finished product
packing. Colorful touch screen, aluminum cantilever operation box,
bottle collective guidance shelves, scraps sliding channel and
safety protection are included.
RODUCTION ARRANGEMENT
1. Machine Foundation Size: 3.5 x 2 m
2. Production Area: 7 x 5 m
3. Minimum Workshop Height: 3.0 m
4. Air Supply Requirement: 1.0m3/min, 0.6Mpa
5. Water Supply Requirement: 8 Tons
6. Machine Power Consumption: 32.5 KW
7. Production Line Power Consumption: 45 KW
8. Whole Line Electricity Arrangement: 250 Amps
9. Minimum Workers Number: 2 Workers
|
