    UTOPH 81AWF Incremental Rotary Encoder , Incremental Optical Encoder For SGMG-30A2AAS

    Ask Lasest Price
    Brand Name : Yaskawa
    Model Number : UTOPH-81AWF
    Price : negotiable
    Payment Terms : TT West Union
    Supply Ability : 100
    Delivery Time : 2-3 work days
    • Product Details
    • Company Profile

    UTOPH 81AWF Incremental Rotary Encoder , Incremental Optical Encoder For SGMG-30A2AAS

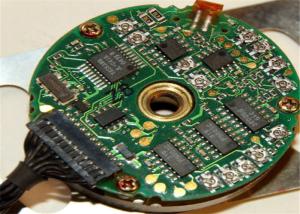

    Servo Motor Encoder Yaskawa UTOPH-81AWF incremental Encoder for SGMG-30A2AAS Servo Motor


    QUICK DETAILS

    1. Brand :Yaskawa
    2. Model :UTOPH-81AWF
    3. Place of Origin :Japan


    DESCRIPTION


    • Servo Motor Encoder
    • Yaskawa Electric
    • Incremental Encoder

    Model NumberUTOPH-81AVF
    CategoryInternal encoders
    ManufacturerYaskawa
    SeriesUT series Encoders for AC Servo and Spindle motors
    TypeIncremental encoder (optical encoder)
    Name of seriesVF
    ConstructionCoupled with plate spring for motor (complete)
    Resolution8192 pulses/rev

    Light-duty Incremental Encoders (SAE-dimension Encoders)


    Features


    • Small body with 1.5 in. diameter and 1.6 in. depth
    • 0.25 in. diameter solid shaft
    • Resolution available from 100 pulses per revolution to 2500 pulses per revolution
    • Open collector or line driver output
    • Up to 200 kHz response frequency
    • Two-meter cable with tinned ends
    • IP50 environmental rating
    Open Collector Models
    Out A and Out B are 90 degrees out of phase. Like any quadrature encoder, four unique logic states are created internally to the encoder. This is based on the rising edge to rising edge (one cycle) on channel A or B that indicates one set of bars on the internal encoder disk has passed by the optical sensor.
    OUT Z is the absolute reference added to an incremental encoder and is also known as home position. It signifies a full rotation of the encoder shaft.

    Line Driver Models


    Channel A (OUT A and A-not) and Channel B (OUT B and B-not) are also 90 degrees out of phase on line driver encoders. OUT Z is the same as on open collector models, and is the absolute reference (home position). It signifies one full rotation of the encoder shaft.



    OTHER SUPERIOR PRODUCTS

    Yasakawa Motor, Driver SG-Mitsubishi Motor HC-,HA-
    Westinghouse Modules 1C-,5X-Emerson VE-,KJ-
    Honeywell TC-,TK-GE Modules IC -
    Fanuc motor A0-Yokogawa transmitter EJA-
    Contact person: Anna
    E-mail: wisdomlongkeji@163.com
    Cellphone: +0086-13534205279
