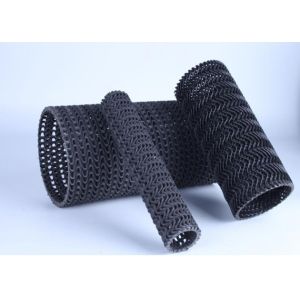

Geocomposite Drain Hard Water Permeable Pipe 3mm Thickness Black
Color For Sewage Treatment
Description
Hard Water Permeable Pipe is made of High- Impact polyethylene (PE).
Hard Water Permeable Pipe 2/3 parts is permeable and 1/3 parts is
drainage
Hard Water Permeable Pipe is a strong anti-corrosion plastic, and
it lightweight, tough, low temperature resistance, chemical
resistance, high compressive strength drainage pipe.
Hard Water Permeable Pipe also known as: drain pipe, grain mesh
permeable tube, hard water tube in the two-thirds upper part with
holes, the lower part 1/3 is without hole, can prevent the leakage
of groundwater occurs secondary, quickly come in the groundwater.
Hard Water Permeable Pipe applied to the construction of railway
construction, highway, airport runway, golf, football field, big
lawn, garden greening, highway, landfill, slope protection,
retaining walls, tunnels and other large channel underground
waterproof engineering.
Specification
Specification(mm) | Outer Diameter(mm) | Thickness(mm) | percentage of opening(%) | Ring-Stiffness(kn/m2) | Length(m) |
Φ50 | 49 | 3 | 50-65 | ≥3 |
4m,6m,9m Or As Request. |
Φ75 | 74 | 3.5 | 50-65 | ≥3 |
Φ90 | 89 | 4 | 50-65 | ≥3 |
Φ110 | 85 | 4.5 | 50-65 | ≥2 |
Φ160 | 110 | 7 | 60-75 | ≥2 |
Φ200 | 160 | 8 | 60-75 | ≥2 |
Property
1. High compressive strength, good pressure resistance.
2. The sieve membrane is selective.
3. High hole opening rate in surface, good feature for water
collection and drainage.
4. Construction convenient.
5. Permanent using life.
6. Good flexibility and adaptable to the earth distortion.
Features
1. Light weight, easy to transport and install;
2. To adapt to the high temperature ;
3. anti-aging The service life is long;
4. Impact resistance against chemical corrosion resistance
5. Ability to collect rainwater(is 5 to 10 times that of other
similar product);
6. The fluid flow rate;
7. For no-perforated at the bottom of the part, focus on rainwater
flowing rapidly;
Application
1. Drainage for the roadbed and road shoulder of highway, railway.
2. Drainage for the back of retaining wall.
3. Drainage for the tunnel and underpass.
4. Drainage for the slopes and dams.
5. Drainage for the green field of playground, golf course, airport
and park.
6. Drainage for the coal fields, landfills, composting fields.
7. Drainage blanket for the decompression method.
8. Underground irrigation and drainage systems for agriculture,
horticulture.
9. Drainage for the roof garden.
10. Filtering materials for sewage treatment.
