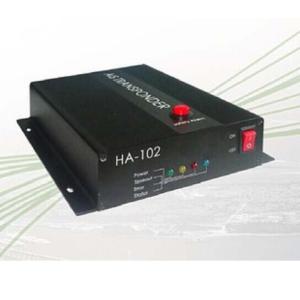

Matsutec HA-102 marine AIS reciever and transmitter Marine ClASS B AIS transponder system with SOS alarm button HA-102

Name: Matsutec HA102 marine AIS reciever and transmitter Marine ClASS B AIS transponder system with SOS alarm button HA102
Brand: Matsutec
Price: 200 USD

Ask Lasest Price
Brand Name :	Matsutec
Model Number :	HA-102
Certification :	CE
Price :	$200-250/set
Payment Terms :	T/T, Western Union,paypal
Supply Ability :	10000sets/month
Delivery Time :	3days after payment

Add to Cart

Product Details
Company Profile

Matsutec HA-102 marine AIS reciever and transmitter Marine ClASS B AIS transponder system with SOS alarm button HA-102

Specifications

marine AIS, AIS system, AIS receiver, AIS, AIS Transmitter, Class B AIS, Class A AIS, AIS products, AIS Transponder

Mutsutec Class B AIS Transponder

Model: HA-102

AIS Transponder with built-in GPS
Self-developed viewer program: Radar & Alphanumeric view
Compatible with major AIS-ready maritime equipments
Anodically treated aluminum housing for extra weather resistance
Manual LON/LAT setting enabled
Dangerous obstacle warning
Friend ship tracking
Switchable transmitting

FEATURES

AIS Transponder with built-in GPS
Self-developed viewer program: Radar & Alphanumeric view
Compatible with major AIS-ready maritime equipments
Anodically treated aluminum housing for extra weather resistance
Manual LON/LAT setting enabled
Dangerous obstacle warning
Friend ship tracking
Switchable transmitting

Specifications

STANDARDS	IEC 62287-1 ( 2006 )
	IEC 61162-1 ( 2000 )
	IEC 61162-2 ( 1998 )

VHF RECEIVER

Frequency Range	156.025MHZ ~ 162.025 MHZ
Channel Bandwidth	25 KHZ
Number of AIS Receivers	2 Receiver ( one time shared between
	AIS/DSC ) / 1 Transmitter
CH-1	Default CH 87B ( 161.975 MHZ )
CH-2	Default CH 88B ( 162.025 MHZ )
Number of DSC Receiver	1 ( CH 70)
RX DSC	156.525 MHZ
Max. Usable Sensitivity	PER less 20% at -107dBm

VHF TRANSMITTER

Power Output	2 Watt ( 33 dBm ±1.5dB )
Modulation	GMSK / FM
Data Rate	9.6K dps / per channel
Modulation Spectrum	IEC 62287

DSC RECEIVER

Modulation	1300 HZ / 2100 Hz FSK
Data Rate	1200 bps ± 30 ppm
Spurious Response Rejection	Over 70dB for Signal @ -104dBm; BER less 1%
Blocking	More 84dB for Signal @ -104dBm; BER less 1%

GPS RECEIVER

Receiving Channels	12 Channels
Acquisition Sensitivity	-140dBm
Tracking Sensitivity	-150 dBm
Position Accuracy	< 2.5m CEP ( GPS ) without SA
Output Rate	1 Hz

POWER SUPPLY

Supply Voltage	12V DC ( 10V ~ 28V )
Fuse	Over Voltage fuse automatic resetting
Power Consumption	Less than 10W

DISPLAY UNIT

3 Indicator Lights	1) Power / Status Indicator
On the Front Panel	2) Two Tx / Rx Operating Indicator

INTERFACE

Serial Port-1 ( NMEA0183)	IEC 61162-1 / 61162-2 with relay Alarm Output
Serial Port-2	RS-232C For PC
GPS Antenna ( Optional )	Female TNC Connector
VHF Antenna ( Optional )	Female Type M Connector
	( Type N Connector optional )

WIRELESS CONNECTION

Bluetooth ( Optional )

BIIT ALARM SYSTEM

BIIT Message on display / Relay Alarm Output

ENVIROMENT

Operating Temperature	Antenna : -25 ~ 70 C Celcius
	Others : -15 ~ 55 C Celcius
Storage Temperature	-25 ~ 70 C Celcius
Humidity	Operating: 0 ~ 95 RH at 40 C Celcius
	GPS Antenna operating : 100% Hermetically sealed
	VHF Antenna operating : 100% Hermetically sealed
Vibration	IEC 60945
Waterproof	IPX5

PHYSICAL

Size in mm ( W )	103mm ( 140mm with mounting )
Size in mm ( H )	50mm
Size in mm ( D )	200mm
Weight	<1 Kg
