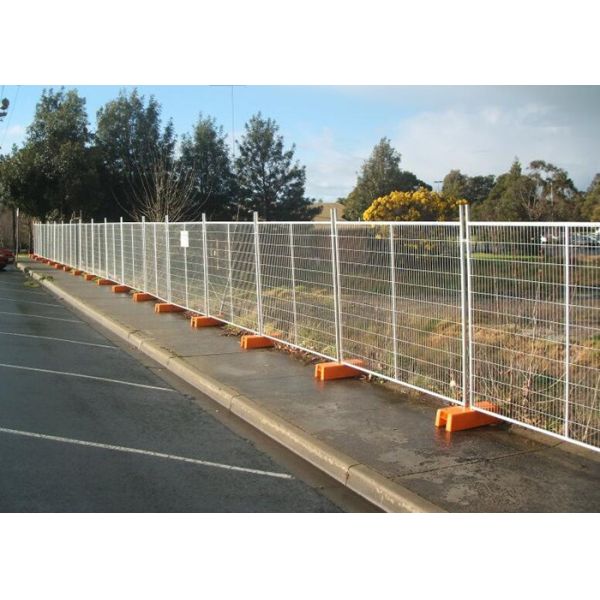

Portable Interlocking Removable Fence Panels Used For Security Site
Temporary fence Panel its easily installing, high perceptivety and
no destrustion to the around
environment features, is widely used in sports, agricultural and
industy field. And its main market is
Australia, New Zealand, European countries and Asia countries.
Fence Top Clips
One side solid square bar, one side solid round bar with solid
square bar connector
.
Cold galvanized and powder coated.
Fence Base
Base designed for improved stability. Cold galvanized, and powder
coated
Application:
1 Temporary fence panel to secure construction sites and private
property.
2 Temporary fencing panel of residential housing sites.
3 Temporary fencing panel and crowd control barriers for major
public. events, sports, concerts, festivals,
4 Temporary fence panel safety fencing for swimming pools
.

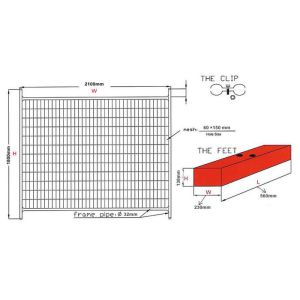

| Temporary Fence |
| Wire Gauge | 3.2mm, 3.5mm, 4.0mm, 4.5mm or as request |
| Opening Mesh | 60*150mm, 75*75mm, 75*100mm, 50*100mm etc |
| Fence Frame Pipe | 32mm O.D.,38mm O.D., 40mm O.D., 42mm O.D., 48mm O.D. etc |
| Regular Size | 2.1*2.4m, 1.8*2.4m, 2.1*2.9m, or as request |
| Plastic Feet | 600*220*150mm, or 580*245*130mm |
| Surface Treatment | Hot-dipped galvanized or electric galvanized,PVC coated |
| Part | Welded mesh Panel, Square Tube Frames,Plastic feet
Clamp,StaySupport |
Temporary Fence Panel Packing
1. Fence panel:
The Fence panel packing have some mat on the bottom of the fence panel pallet to keep the bottom
panel
The Panel Packing has 4 metal corner around the panel pallet, let
it be more strong. It can't be destroyed
The Packing have iron plate under the plastic bandage, or if the work pack the pallet,
The Packing Panel have wood plate on the top of the fence panel, to
avoid the above pallet will be destroyed the under pallet panel.
2. Fence Feet
Every fence feet is covered by cap then with plastic film, then metal pallet.
3. Clip: Plastic film+carton box.
| Australia Temporary Fence Common Size |
| Wire Gauge | 3.2mm, 3.5mm, 4.0mm, 4.5mm or as request |
| Opening Mesh | 60*150mm, 75*75mm, 75*100mm, 50*100mm etc |
| Fence Frame Pipe | 32mm O.D.,38mm O.D., 40mm O.D., 42mm O.D., 48mm O.D. etc |
| Regular Size | 2.1*2.4m, 1.8*2.4m, 2.1*2.9m, or as request |
| Plastic Feet | 600*220*150mm, or 580*245*130mm |
| Surface Treatment | Hot-dipped galvanized or electric galvanized |
| Part | Welded mesh Panel, Round Tube Frames,Plastic feet Clamp,StaySupport |
