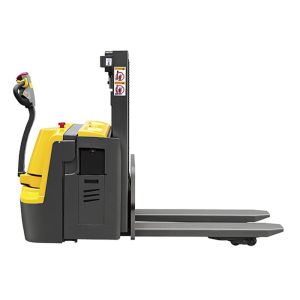

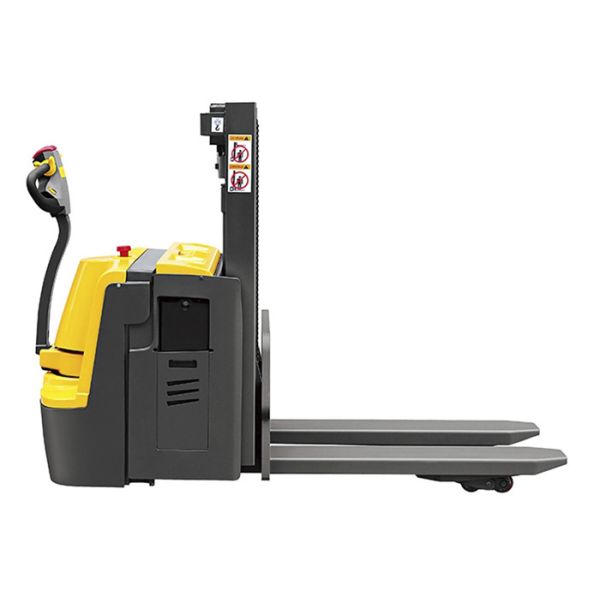

    Double Pallet Warehouse Forklift Trucks Electric Type With Wear Resistant Wheel

    Ask Lasest Price
    Brand Name : REACH
    Model Number : CBD20S
    Certification : CE, TUV
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 200 sets per month
    Delivery Time : 25 - 30 days
    • Product Details
    • Company Profile

    Double Pallet Warehouse Forklift Trucks Electric Type With Wear Resistant Wheel

    Double pallet 2000kg electric warehouse forklift trucks widely used in low shelves warehouse


    Quick Details:

    Model: Double pallet warehouse forklift trucks CBD20S
    ​​​Capacity: 2000kg
    Lift height: 1600/2000/2500mm
    Fork dimensions: 60/180/1100mm
    Travel speed, load/unload: 4.5/5.2km/h

    ​Lift speed, load/unload: 0.03/0.04m/s

    ​Lower speed, load/unload: 0.05/0.045m/s
    Battery: 24V210Ah


    Advantages:


    Structural

    • Vertical driving wheel offers small turning radius.
    • ​Dividable and exchangeable mast.
    • ​Adjustable floating balance wheel is resistant to wear and stable.
    • ​Sliding rail connects the moving part of the front and rear, makes lifting and lowering stable.

    Safety and efficiency

    • ​Carry two pallets at one single time.
    • The tiller head is equipped with an emergency reverse direction switch, which provides safer operation.
    • Built-in pressure relief valve protects the truck from overload, and increases the truck's safety.
    • Stepless speed control and turtle speed switch.
    • Side way battery.

    Easy maintenance

    • CANbus technology reduces wiring complexity.
    • ​Hall-effect throttle control eliminates ware components and prolongs its use time.
    • ​The balance wheel is detachable, convenient to maintain.
    • ​Integral and modularized electrical system makes the maintenance of the electrical parts convenient.




    SPECIFICATIONS OF DOUBLE PALLET WAREHOUSE FORKLIFT TRUCKS
    ModelCBD20S
    Capacitykg2000
    Capacity with mast liftkg1000
    Capacity with wheel arm liftkg2000
    Load center distancemm600
    Lowered fork heightmm90
    Height, mast loweredmm1082-1382
    Max. lifting heightmm1600-2500
    Initial liftmm120
    Overall lengthmm1962
    Overall widthmm775
    Fork sizemm60/180/1100
    Width overall forksmm570/650
    Aisle width for pallets 1000*1200 crosswaysmm2238
    Aisle width for pallets 800*1200 lengthwaysmm2288
    Turning radiusmm1705
    Travel speed, laden/unladenkm/h4.5/5.2
    Lift speed, laden/unladenm/s0.03/0.04
    Lowering speed, laden/unladenm/s0.05/0.045
    BatteryV/Ah24/210
    Service weightkg950
