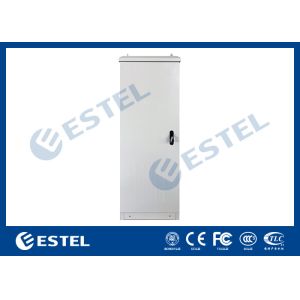

    Double Wall Aluminum AL5052 Outdoor Power Cabinet / Outdoor Telecom Cabinet With SNMP Monitoring

    Ask Lasest Price
    Brand Name : ESTEL
    Model Number : ET92-000460AL
    Certification : ISO9001, CE, 3C, FCC, TLC, IP55
    Price : 715-4286 usd
    Payment Terms : L/C,D/A,T/T, Western Union, Paypal, etc
    Supply Ability : 6,000 sets per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    Double Wall Aluminum AL5052 Outdoor Power Cabinet / Outdoor Telecom Cabinet With SNMP Monitoring

    Double Wall Aluminum AL5052 Outdoor Power Cabinet / Outdoor Telecom Cabinet With SNMP Monitoring


    1. Application


    The Outdoor Telecom Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access or transmission switching station, emergency communication or transmission, etc.


    2. Features

    (1) The cabinet is dustproof, sunproof and rainproof, used in outdoor environment.

    (2) Cabinet cooling: fans.

    (3) Include grounding bar.

    (4) Include cable entry plate at cabinet side and cabinet bottom.

    (5) Coating: outdoor powder coating RAL7035.

    (6) Include documents holder, laptop table, filter, and door stopper on cabinet door.

    (7) Include cable duct.

    (8) Include battery protection bracket for each battery string.

    (9) Include bind cover on cabinet right side.

    (10) Include base mounting frame.


    3. Technical Parameters


    Item

    Type

    Technical Parameter

    Structure

    Dimension

    External Dimension: W×D×H 650×600×1951mm

    Layout

    1 compartment

    Equipment Installation Method

    The upper part is standard 19” installation rack (22U), the lower part is two battery shelves for installing two string batteries.

    Door

    With one front door, and anti-theft three point lock for outdoor cabinet (support padlock).

    Material

    Aluminum AL5052, double wall, 1.5mm thick outer plate, 1.5mm thick inner plate

    Heat Insulation

    There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.

    Ingress Protection

    IP55

    Temperature Control

    Cooling

    Fan System:

    Include 3 fans;

    Power Supply: DC48V;

    Air inlet at front door and air outlet at cabinet top.

    When temperature inside cabinet is above 25 °C, fan will start to work; when temperature inside cabinet is below 25 °C, fan will stop working. Fan start working temperature is adjustable, can be set at different temperature according to need, factory default is 25 °C.

    The temperature sensor detect the temperature and send information to environment monitoring unit.

    Lighting

    LED lamp

    DC48V LED lamp

    Temperature

    Temperature

    Working Temperature: -40°C ~ +55°C



    Storage Temperature: -50°C ~ + 70°C



    Transport Temperature: -50°C ~ +70°C

    Humidity

    Relative Humidity

    5% ~ 100%

    Pressure

    Air Pressure

    62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)

    Radiation Intensity

    Solar Radiation Intensity

    1120 ×(1±5%)W/m2


    4. Accessories List


    No.

    Item

    Quantity

    Unit

    Specs

    1

    Outdoor Telecom Cabinet

    1

    PC

    (1) External Dimension: W×D×H 650×600×1951mm

    (2) One compartment

    (3)With one front door, and anti-theft three point lock for outdoor cabinet

    (4) Material: aluminum, double wall, 1.5mm thick outer plate, 1.5mm thick inner plate. With thermal insulation.

    2

    Fan System

    1

    PC

    Include 3 fans;

    Power Supply: DC48V;

    3

    Environment Monitoring Unit

    1

    PC

    Model: NEM-500-SNMP 1U, DC48V, support SNMP communication

    4

    Water Sensor

    1

    PC

    Model: NSW-K1P5

    5

    Smoke Sensor

    1

    PC

    Model: JTY-GD-T12

    6

    Temperature and Humidity Sensor

    1

    PC

    Model: NSTH-A1T4

    7

    Door Sensor

    1

    PC

    Model: M520

    8

    Tilt&Shock Sensor

    1

    PC

    Model: NSS-K1A1

    9

    LED Lamp

    1

    PC

    DC48V

    10

    LED Lamp Switch

    1

    PC

    Control LED lamp on/off. LED lamp will turn on when cabinet door is opened, and will turn off when cabinet door is closed.

    11

    AC Power Distribution Unit

    1

    PC

    1×80A 2P, 1×20A 2P, 1×6A 2P

    L1+L2+N+E terminal

    12

    Package

    1

    PC

    Wooden Case

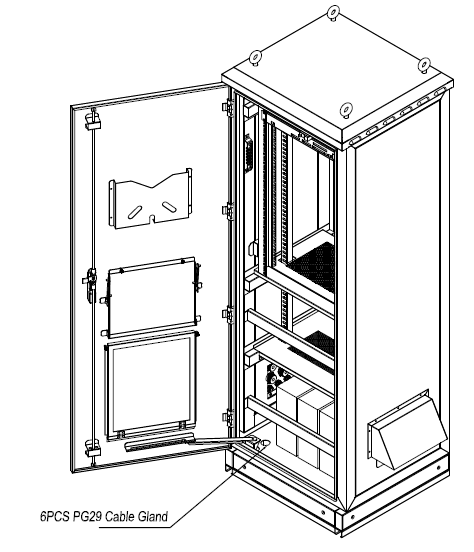

    5. Cabinet Dimension



    4. Air Flow
