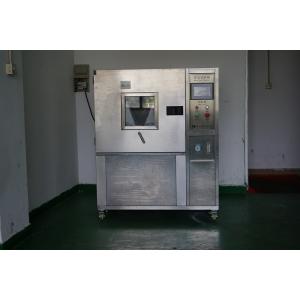

    Customized Experimental Dust Resistance Test Chamber For Climate Test

    Ask Lasest Price
    Brand Name : HAIDA
    Model Number : HD-E706-1
    Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Customized Experimental Dust Resistance Test Chamber For Climate Test

    Customized Experimental Dust Resistance Test Chamber For Climate Test


    Description:

    Dust test chamber is used for dust-proof and dust resistance experiments for various automobile parts. The main test parts include lights, instrumentation, safety belt, seat regulator, electric dust cover, steering gear shaft and locks, testing it’s dust resistance and movement safety.


    Standard Features(IP5X Standard):

    ItemSpecification
    Internal dimension1000*1000*1000(W*H*D)
    Test sample50*40*20cm size,4-6kg weight
    Chamber materialSUS304 Stainless steel
    Specifications of square mesh sieveMesh hole 75um, mesh metal wire diameter 50um
    Talcum powder amount2kg/ m³
    Airflow speedNo more than 2m/s
    DoorLeft open door with tempered glass door
    Controller

    PLC Touch Screen controller, programmable to set as below cycle:

    • Blowing dust time (Stop/Blow) m/s
    • Cycle time: can be adjusted
    • Pre-set test time: 0s ~99m99s
    Vacuum systemPressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump
    Vacuum pump capacity60-600 L/H
    FanCentrifugal fan
    Safety protection devicesMeter over-temperature function, Phase shortage protection, Power short-circuit protection

    Chamber Design Features:

    1, Chamber material: SUS#304 stainless steel;

    2, Transparent window is convenient to observe specimen during testing;

    3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;

    4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.
