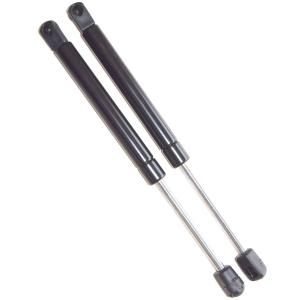

12" Compression Gas Strut Spring Shock Lift Prop rod Cylinder 60 lb
12" 60 LB GAS PROP
Part Number: CS-YQ-03
Extended Length 12" Center eyes of ball sockets
Compressed length 8.5" Center eyes of ball sockets
Force 60 lbs
Ball Sockets 10mm
A pair (2) of replacement shocks
with 2 years warranty
Specifications
Product Name: 12" Compression Gas Strut Spring Shock Lift Prop rod Cylinder 60
lb
Material: seamless steel (304 stainless steel for your choice)
Color :black ,red, yellow,white or as your request
Thread :custom-made
Joints: As customers' requirement
Used: industry machine
Warranty:2 year
Package:1 pcs in a poly bag, 50pcs in a carton.
lid stay gas spring :
This separate the oil from the gas inside the spring ,
so that the damping can be very closely controlled in either
compression or extension .
Product description:
Cylinder material: Steel, SS304, SS316
Shaft material: Steel, SS304, SS316
Cylinder finishing: Black ,Silver or other color
Shaft finishing: Chrome/QPQ
Salt spray time: achieving more than 72 hours.
Fatigue test: decay less than 9% after 20,000 cycles.
Service life: at least 50,000 cycles in normal environment.
Working temperature range: –30 °C - +80 °C.
Main Specifications and Dimensions:
| Extended length(mm) | stroke length(mm) | D1*D2(MM) | Force F1(N) | Fr(max) |
| 100-300 | 30-100 | 4*12 | 20-200 | 30 |
| 301-600 | 101-200 | 6*15 | 50-200 | 50 |
| 601-900 | 201-300 | 8*18 | 100-800 | 60 |
| 901-1200 | 301-400 | 10*22 | 150-1150 | 80 |
| 1201-1600 | 401-500 | 12*22 | 1501200 | 80 |
| 500-1200 | 200-500 | 12*26 | 200-1500 | 80 |
| 500-1300 | 200-600 | 14*28 | 200-2000 | 100 |
Brief introduction:
lid stay gas spring also called mini support bar, it can play a
role in support, cushioning, there is no stop at trip. It used
comfortable, convenient installation. Mainly used in aircraft,
automobile, engineering machinery, furniture and office supplies
industry.
Delivery:
1000 PCS, 7 days.
Shipment: We can accept your appionted forwarder.
OEM Manufacturing welcome: Product, Package...
Sample order
We will reply you for your inquiry in 24 hours.
After sending, we will track the products for you once every two
days, until you get the products. When you got thegoods, test them,
and give me a feedback.If you have any questions about the problem,
contact with us, we will offer the solve way for you.
Company introduction
Guangzhou CSZY hardware Co., Ltd. is located in GUANGZHOU . We are
a professional Hardware company, Our goods including Gas springs,
Lab Furniture parts, Oil Cylinder, Electronic Lift .
set design, development, manufacturing as a professional supplier.
We focus on a series of fashion accessories, a wide range of
diversity, reasonable price and on-time delivery.
