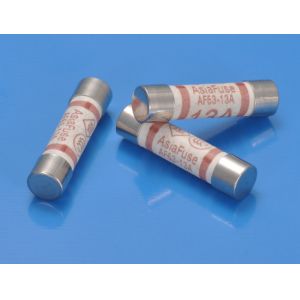

264V AC Electronic Circuit Board Fuses 6x25mm UK specification
OC_AF63-datasheet.pdf
Main Characteristics
British plug to fuse; fast/medium-acting
Standard
BS1362-1973
Materials
Tube: Ceramic
End caps: Nickel-plated brass
Operating Temperature
-55℃ to +125℃
Storage Conditions
+10℃ to +60℃
Relative humidity:≤75% yearly average
without dew, maximum 30 days at 95%
Vibration Resistance
24 cycles at 15 min. each (60068-6)
10-60Hz at 0.75mm amplitude
60-2000Hz at 10g acceleration
Soldering Parameters
260℃.≤5 sec (Wave Soldering)
350℃.≤3 sec (Hand Soldering)
Soldering Peak:
260℃. 10 sec. (IEC 60068-20)
| Time vs Current Characteristics: BS1362-1973 |
| Rated Current | 100% | 160% | 190% |
| 1A～13A | >1000h | >30min | <30min |
Electrical Characteristics
| Amp Code | Rated Current | Max. Voltage | Breaking Capacity | Nominal Melting I²t(A²sec) | Max. Power Dissipation |
| 1100 | 1A | 264V AC | 6kA@
264V AC 50Hz
P.f.0.3-0.4 | 1.44 | 1W |
| 1200 | 2A | 8.73 |
| 1300 | 3A | 29.16 |
| 1500 | 5A | 144 |
| 1700 | 7A | 146.4 |
| 2100 | 10A | 324 |
| 2130 | 13A | 961 |
Dimensions
FAQ
Q: What can i do if i got a broken product form A-TEAM FUSE INC?
A: First of all please tell us as soon as possible after we will
send a new one to you immediately but please send the broken
product to us .you don't have to worry about the carriage charge we
will pay for that.
Q;Are we a importer or manufacturer?
A;We are a manufacturer
Q:Why you have to choose us
A:High quality assurance. The most competitive price and fast
shipping
Please tell me:
What product specifications do you need? when you ask for a
quotation.I will give you the most competitive price per as your
requirements. And we have many types for you to choose.
P.S.:If you can't find any products to meet your requirements.
welcome to send us the details drawings so that we can provide us
our professional & best service to you.
