    Security Flap Barrier Gate Entry Systems

    Ask Lasest Price
    Brand Name : WEJOIN
    Model Number : WJTY202
    Certification : ISO,CE
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 50PCS/week
    Delivery Time : 10-30 days
    • Product Details
    • Company Profile

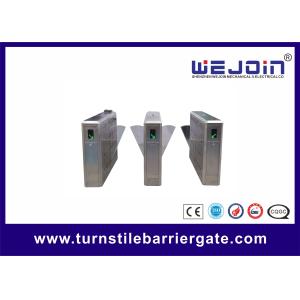

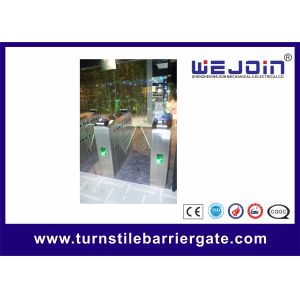

    Security Flap Barrier Gate Entry Systems


    600Mm Security Flap Barrier Gate Entry Systems Bi - direction In Aluminum Alloy


    Applications:


    High class communities, intelligent buildings, hotels, subway stations and other high level venues.


    Functions and Features:


    1. A compact electro-mechanical design with unique drive and a self-lock mechanism (no need regular gear clutch structure).

    2.Input interface available for dry contact and switch signal connection.

    3.Automatic detection for malfunctions.

    4. Adjustable auto-delay closing

    5. Infrared photocells for safety access

    6. Alarm for unauthorized access and no access against passenger flow

    7. Adjustable access directions.

    8. Auto-closing when power on

    9. Auto-open and free access when power off

    10. Anti-reverse passing

    11. No battery is needed.

    12. Emergency interface available.

    13. Traffic light indicating passenger access.


    Technical Specifications:


    1. Housing matrial: 304 grade stainless steel or painted steel(thickness:1.5mm)

    2. Flap wing: acrylic glass, or resin, or PVC

    3. Net weight: 70kgs/unit

    4. Dimension:1200*270*1000mm

    5. Barrier wing: length 275mm

    6. Standard passage width: 600mm

    7. Power supply: 220V±10%, 110± 10%

    8. Motor: DC12V

    9. Input interface: dry contact signal or 12V electric level signal or DC12V pulse signal with width of more than 100ms, driving current: >10mA

    10. Normal life-span: 3 million times

    12. Transit speed: 30-40 persons/min

    13. Opening/Closing time:0.5 second

    14. Starting time after power is on: 3 seconds

    15. Automatic reset time after fault: 10 seconds

    16. Working environment: indoor, outdoor(with a tent over)

    17. Working temperature:-25°C-50°C

    18. Relative humidity:≤90% no condensation
