Hast Pressure Accelerated Aging Test Chamber...

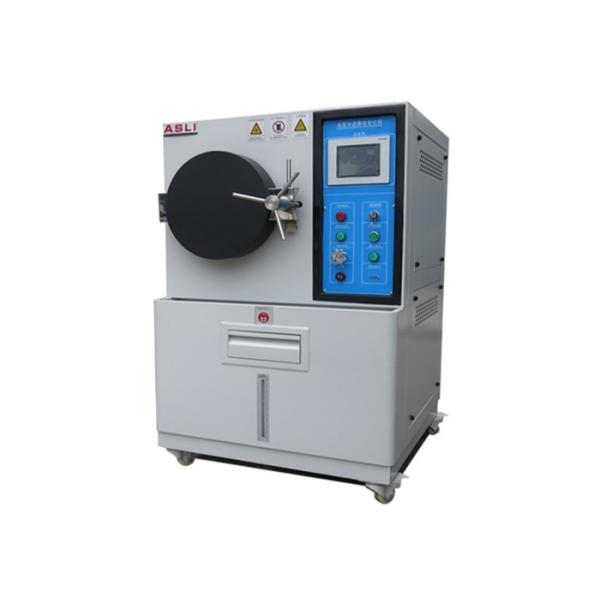

HAST - 25 Programmable HAST Chamber Pressure Accelerated
Environmental Aging Chamber
Application:
HAST accelerated aging chamber is widely applied to the testing of
sealing property for multi-layer circuit board, IC sealing package,
LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare
earths and magnet iron, in which the resistance to pressure and air
tightness for above mentioned products can be tested out.
Technical Parameters:
| Model | HAST - 25 |
| Internal Dimension ΦxD (mm) | 300x250 |
| External Dimension ΦxD (mm) | 850x1300x900 |
| Steam Temperature Range | Steam Temperature Range: 100℃~135℃, (143℃ is optional) |
| Relative Pressure/ Absolute Pressure | Relative pressure: display values indicated on the pressure gauge
Absolute pressure: pressure gauge value adds 100 Kpa (The actual
value in the inner box) |
| Comparison Table of Temperature, Humidity , Pressure |  |
| Steam Humidity | 70~100%R.H. steam humidity adjustable |
| Steam Pressure(Absolute Pressure) | 101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2 ; (3.0Kg/cm2 is special standard) |
| Recursive Device | Steam in forced-circulation |
| Safety Protective Device | Water short storage protect, over pressure protect.(have
automatically/manual water replenishing, automatically discharge
pressure function ) |
| Accessories | Two layers stainless steel plate |
| Equipment Capacity(L) | 17 |
| Power | AC 220V(±10%) ,50/60HZ; AC 380V(±10%) ,50/60HZ |
Safety device:
1. Safety device for the pot: If the inner box is not closed , the
machine can not start
2. Safety Valve: When the inner box’s pressure higher than the
machine’s undertake value, it will self-relieve.
3. Double overheat protection device: When inner box’s temperature
is too high, it will alarm, and Automatic cut off the heating
power.
4. Cover protection: The inner box’s cover is made of aluminum
alloy, can protect the worker from scald.
Features:
1. Automatic adding water function, and automatic filling water
upon the water short storage while testing.
2.Automatic operation to test process finished, easy to use.
3.Temperature control: LED digital temperature controller can make
accurate testing of temperature setting, control and display.
4. LED digital timer, when the inner box's temperature reached the
setting value, then start to time to ensure the test complete.
5.Accurate pressure: temperature chart always shows the inner box's
pressure and relative humidity.
6.Water device is automatically discharge not saturated steam in
order to achieve the best steam quality.
7.A integrated silica gel door gasket, air tightness is very good,
and long operation life.
8.The inner box is mirror-polished , graceful and non-pollutionc
Company Information:
We are a long history testing equipment manufacturer, in the past
25 years, we devoted to simulation environmental testing equipment
and Mechannical vibration and shock testing machine.Hast Highly
Accelerated Stress Test Chamber is our star products, and we had
obtained the CE certification for this machine.
FAQ:
1. Are your company a trading one or a factory?
Factory ,28 years focusing on test instruments field,4 years
exporting experience.
2. After an order is placed, when to deliver?
Generally about 20 workdays, If we have finished products, we can
arrange shipment within 3 workdays.
Please be aware that our production lead times depend on specific
items and item quantities.
3. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sale service team will
provide perfect technical support,and help customer solve problems
encountered while using our product, handles guest problems and
complaints in a professional and timely.
4. What about the services and product' quality?
Service: OEM service,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and
test, the finished products must through a third party calibration
institutions before shipping and delivery goods.
5. How to install and training?
If the products is easy to install and training, customers can
learn the operation and maintenance manual to installation and use.
If the products is hard to use, customers can come ASLi factory to
learn how to installation and use. And our engineers have a
passport, we can go to overseas.
6.What's your main products?
Environmental chambers, temperature (humidity) chamber, Hast Highly
Accelerated Stress Test Chamber,ESS chamber, Walk in stability
chamber,Vacuum oven,Altitude chamber,vibration test system,
mechanical shock tester,environmental combined vibration
chamber,etc.
