WS2812B / SK6812 High brightness Flexible LED Display Screen Panel
Module
Feature :
Adopt international leading manufacturer ’s chips high brightness
width angle , color consistency, and stable performance.
Each lamp beads form a loop, can be arbitrarily cut according to
the needs of the length of the loop, without damaging other parts
Convenient to Fix and install, flexible cutting operation make the
construction simple, ultra-thin design, low temperature light
source, make the selection for the auxiliary material more flexible
on installation Energy saving, high brightness, low heat, low
energy consumption, Clean, and beautiful.
Use DC5V to power supply, more safe on using Protection Rating:
IP62 IP65 IP67 IP68, use range is wide Small, multi-colored, no
radiation, high shock resistance, is a new generation of green
high-tech products.
Description :

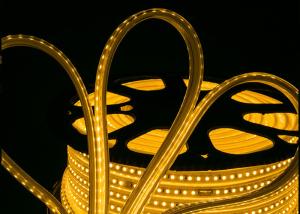

WS2812B LED Strip use the FPCB (flexible printed circuit board) to
be assembly circuit boards, use SMD LED lights and components to be
assembled, so that the thickness of the product only just like,
Occupy a small space, and can be arbitrarily cut, FPC is soft
material, can random winding, and wound freely movable in
three-dimensional space without breaking, suitable for irregular
place and narrow space of places to install, but also as any
possible bending, suitable for advertising, decorative lighting,
any combination of the kinds of patterns, LED Chip is built-in IC,
then the components is less , pixels can be high, can make
attractive appearance, and so on.
IC is designed with one data line, two power lines, 256 gray scale,
high brightness, fast data transfer, fast screen refresh, etc.,
with the controller, you can achieve monochrome, gradient, water ,
horse racing, text, numbers, chase, English, pictures, animations,
video, and so on.
Products using DC5V voltage to power supply, high safety factor,
using the import led chip to be the light source , high brightness,
light fade is small, maintenance-free, long
Parameter :
| Item | P10 |
| Pixel Pitch | 10mm |
| Module Size | 320×160mm |
| Module Resolution | 32x16dots |
| Pixel Density | 10000 dots/sqm |
| Brightness | ≥4500 nits |
| LEDS | SMD 3535 |
| Pixel Array | 1R1G1B |
| Refresh Rate (Hz) | ≤1920 |
| Scan Mode | 1/4 S |
| Viewing Angle-H/V | 140°/120° |
| Weight | 0.490 kg |
Application :
Display
Advertisment
