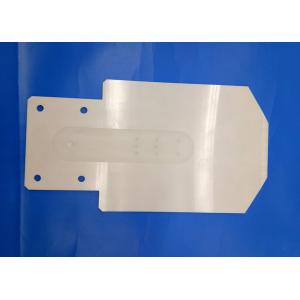

Advanced Technical Ceramics Zirconia Semi-conductive Ceramic Plates
Product Description
Advantages of Semi-conductive Ceramic Plates:
1. Refractory.
2. Isostatic Pressed.
3. Long Service Life.
4. High polishing precision.
5. High Corrosion and Wear Resistance.
6. Semiconductor Performance Precision.
7. High Temperature and Pressure Resistance.
8. High Purity Zirconia and Alumina Ceramic Material.
They are high corrosion and wear resistance and strong impact
resistance and delivers 10 times longer working life than metal semi-conductive parts.
Properties Sheet:
| Properties | Units | 95 Alumina | 99 Alumina | Zirconia |
| Density | ɡ / cm3 | 3.65 | 3.92 | 5.95 - 6.0 |
| Water Absorption | ％ | 0 | 0 | 0 |
| Coefficient of Thermal Expansion | 10-6 / K | 7.9 | 8.5 | 10.5 |
| Modulus of Elasticity Young’s Mod | Gpa | 280 | 340 | 210 |
| Poisson’s Ratio | / | 0.21 | 0.22 | 0.3 |
| HV Hardness | Mpa | 1400 | 1650 | 1300 - 1365 |
| Flexural Strength @ Room Temperature | Mpa | 280 | 310 | 950 |
| Flexural Strength @ 700℃ | Mpa | 220 | 230 | 210 |
| Compressive Strength@Room Temperature | Mpa | 2000 | 2200 | 2000 |
| Fracture Toughness | Mpa * m½ | 3.8 | 4.2 | 10 |
| Heat Conductivity @ Room Temperature | W / m * k | 18 - 25 | 26 - 30 | 2.0 - 2.2 |
| Electrical Resistivity @ Room Temperature | Ω*mm2 / m | ＞1015 | ＞1016 | ＞1015 |
| Max Application Temperature | ℃ | 1500 | 1750 | 1050 |
| Resistance to Acid Alkaline | / | High | High | High |
| Dielectric Constant | / | 9.5 | 9.8 | 26 |
| Dielectric Strength | KV / mm | 16 | 22 | / |
| Thermal Shock Resistance | Δ T ( ℃ ) | 220 | 180 - 200 | 282 - 350 |
| Tensile Strength @ 25℃ | Mpa | 200 | 248 | 252
|
Detailed Images
Related Products
Packaging and Shipping
Zirconia Ceramic Pin Gauge / Dowel Pins will be packed in PP bag or
sponge tray, then put in standard export carton packing, or OEM
packing.
Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea
transportation.
Company information
Who Are We?
Mingrui is a professional factory with years OEM experience in manufacturing industrial ceramic
parts.
What Do We Do?
We produce (OEM ) strengthened structure zirconia and alumina ceramic rod, ring, tube, shaft, plate, sleeve,
bushing, washer, valve, plunger, pin, nozzle and ceramic arm, etc., they are applicable to instruments, medical instruments,
clocks and electronic products, mills, energy and power, machine
and metals, autocar and military, spaceflight and some other
high-end fields.
All of our products with certificates, such as , CE, TUV, etc..
Factory Show
Production Process Show
One-stop production, from the raw material to final product.
