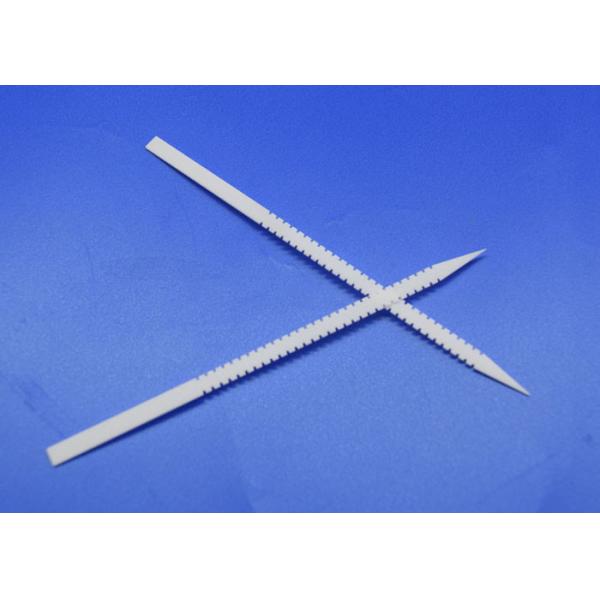

Customzed White High Stable Function Thin Zirconia Ceramic Pin
Needle
Features :
1. High strength
2. High toughness
3. Excellent wear resistance
4. High hardness
5. Low thermal conductivity
6. Good chemical and corrosion resistance
Applications
1.Various wear parts for wear applications
2.Valves and pump components
3.Ceramic plain, balls and roller bearings
4.Tubes, fixtures etc. for High temperature
5.Copper tube extruding & reducer dies
6.Thermal insulation components
7.Wear resistance and Cutting blades
8.Ceramic knives
9.Grinding media
Product Name | Customzed White High Stable Function Thin Zirconia Ceramic Pin
Needle |
Material | Zirconia, Alumina, Silicon nitride and machinable ceramic |
OD | 0.3mm - 30mm |
Length | 10mm - 200mm |
Surface Roughness | Ra0.05 |
Torlerance | +/- 0.001mm |
Lead time | 10 - 30days |
Shipping | Air Express (DHL/UPS/TNT/ FedEx) |
Product Description
Mingrui Ceramics has years of experience designing and developing
technical ceramic solutions for a wide variety of applications and
industries.High Temperature Refractory Ceramic Threaded Rod Silicon
Wafer Cutting Machine. We offer this expertise to all of our
customers to ensure the best design and materials are chosen for
their specific application and needs.High Temperature Refractory
Ceramic Threaded Rod Silicon Wafer Cutting Machine,Typically, our
custom technical ceramic components and parts we supply are used
for one of three main reasons:
Electrical Insulation Small Ceramic Needle Pin with Good Roughness
High temperature ceramics – crucibles, nozzles, lasers,
furnace/kiln fixtures
Electrical Insulation Small Ceramic Needle Pin with Good Roughness
Wear and corrosion resistant ceramics – plates, housings, gages,
caps/lids
Electrical Insulation Small Ceramic Needle Pin with Good Roughness
Electrical insulation ceramics – contact blocks, standoffs,
fasteners, spacers
Electrical Insulation Small Ceramic Needle Pin with Good Roughness
Mingrui Ceramics is one of the world’s premiere technical ceramic
suppliers – contact us to see what technical ceramics we can create
for you.
Properties of Zirconia and Alumina Ceramics :
| Properties | Unit | | Alumina | Zirconia | | 96%Al2O3 | 99%Al2O3 | 99.5%Al2O3 | 99.8%Al2O3 | 99.9%Al2O3 | 3Y-TZP | | Colour | - | White | White | Ivory | Ivory | Translucent | white/black | | Bulk density | g/cc | 3.78 | 3.88 | 3.93 | 3.93 | 3.98 | 6.03 | | Water Absorption | % | 0 | 0 | 0 | 0 | 0 | 0 | | Grain size | μm | 5-10 | 2-5 | 2-5 | 2-5 | 2-4 | 0.4 | | Bending strength | MPa | 380 | 350 | 360 | 380 | 300 | 1000 | | KIC | MPa.m1/2 | 3~4 | 4 | 3~4 | 3~4 | 3~4 | 5~8 | | Vickers Hardness | GPa | 13 | 14 | 14.5 | 14.5 | 15 | 13 | | Young's Modulus of Elasticity | GPa | 360 | 370 | 370 | 380 | 390 | 200 | | Thermal Conductivity | W/m° K | 24 | 28 | 32 | 32 | 34 | 2 | | Coefficient of Linear Expansion | 10-6/°C | 6.7 | 7.2 | 7.2 | 7.2 | 7.2 | 10.5 | | Dielectric Constant (1MHz) | - | 9.1 | 9.5 | 9.6 | 9.6 | 9.9 | 33 | | Dielectric Loss Angle (1MHz) | - | 0.0002 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.002 | | Dielectric Strength | V/m | 15×106 | 15×106 | 15×106 | 15×106 | 15×106 | 11×106 | | Volume Resistivity | Ohm.cm | >1014 | >1014 | >1014 | >1014 | >1014 | 1013 |
|
Mroe Photos
FAQ
What kind of industrial ceramics do you have?
We have 95%-99.99% alumina ceramic parts and 95% zirconia ceramic
parts.
What kind of molding method can you supply?
Dry pressing, isostatic pressing,grouting,hot-chamber die
casting,tape-casting,injection moulding, plastic
forming,etc.Injection molding and isostatic pressing is most
commonly used.
What stabilizer do you use when processing?
Yttria stabilizer is the most commonly used in our industrial
ceramic
